Description

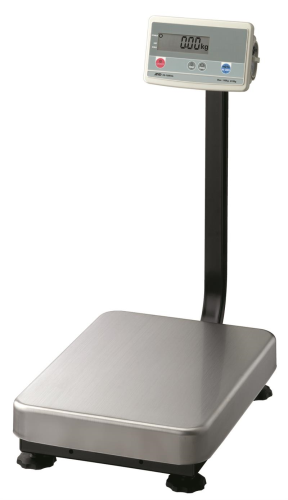

The FG-60KAL is a member of AND's FG-K Series Scales. This series combines fast response time and rock-solid durability in an easy to use package to suit any weighing application. Three user selectable display readings allows the user to choose the resolution needed for the job. Additional weighing modes include parts counting and HI/OK/LOW comparator functions for checkweighing. Weighs in lbs, kg, or oz.
Features:
- Easy to operate and clean
- One second response time
- Three weighing resolutions−Normal (1/3000), *High (1/6000 for 30kg and 60kg weighing capacity), and *Higher Resolution (1/12000 for 60kg and 1/15000 for 30kg and 150kg weighing capacity)
- AC or battery operation (4 C-dry cell batteries)
- Stainless steel weighing pan
- Full scale pushbutton tare
- NTEP Approved using Normal resolution
- Counting function with sample size of 5, 10, 20, 50, and 100 pcs for unit weight registration
- Comparator function− HI/OK/LO comparator indication and optional relay output (FG-24) for checkweighing applications
- Auto-power Off function automatically switches off when scale displays zero for approx. five minutes
- Low power supply indicator−alerts user to check AC power supply "Lb1" or batteries "Lb0"
- Filtering function−filtering levels of slow, normal, and fast selectable to suit environmental conditions
- Leveling feet and bubble for easy adjustment of the scale level for accurate weighing
- Optional RS-232C and Comparator Output−easily connect to peripherals such as printer, comparator light and computer
- Column mounted display
*Non-NTEP settings
Specifications:
| Min. display (kg) | 0.02**/0.01/0.005 |
| Min. display (lb) | 0.05**/0.02/0.01 |
| Min. display (oz) | 1**/0.5/0.2 |
| No. of samples | 5 (can be changed to 10, 20, 50 or 100) pieces |
| Max. counts | 96,000 pcs |
| Min. unit weight | 0.625 g |
| Repeatability (Std. Deviation) | 0.01 kg |
| Linearity error | 0.02 kg |
| Sensitivity drift | 20 ppm/°C (10 °C~30 °C / 50 °F~86 °F) |
| Display | 7 segment LCD display (character height 26 mm) |
| Display update | 10 times per second |
| Battery Operating | Approximately 150 hours with alkaline dry cell battery |
Specifications
| Capacity | 150 lb / 60 kg / 2400 oz. x 0.01 lb / 0.005 kg / 0.2 oz. |
|---|---|
| Power | AC adapter or C size (R14P/LR14) x 4 batteries |
| Operating Environment | -10 to 40 degrees C / 14 to 104 degrees F; < 85% relative humidity (no condensation) |
| Connectivity | Optional RS-232C and Comparator output |
| Other | Pan size: 15.4 x 20.9 in. (390 x 530 mm) |
| Dimensions | 390 x 771 x 781 mm |
| Weight | 16.4 kg |
| Manufacturer | A&D Weighing |
| Model No | FG-60KAL |
| Warranty | 2 year |
