Description

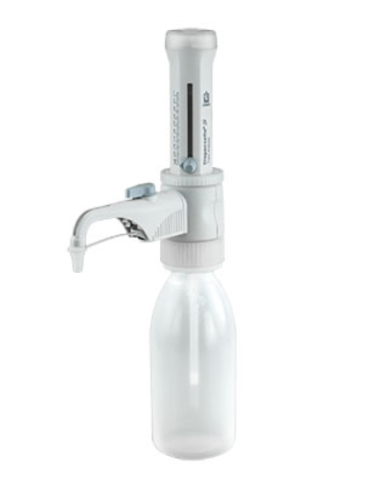

BrandTech™ Dispensette S Trace Analysis, Analog Adjustable-Volume, 1-10 mL, Pt-Ir, Recirculation Valve, 4640041
Features:
- For precise volume dispensing of high-purity media for trace analysis
- Especially suited for dispensing acids, bases and hydrogen peroxide in the volume range from 1 to 10 mL
- Components of fluid path have been selected to only contain highest purity materials, such as fluoroplastics and sapphire resulting in trace metal content of dispensed liquid generally in low ppb range, or even in the low ppt range, depending on application
- Both platinum-iridium and tantalum valve springs are available for application compatibility
- Simple to mount discharge tube available with or without integrated recirculation valve
- Designed without additional sealing rings for ease of cleaning and maintenance
- Replaceable discharge valve with safety valve
- Olive-shaped filling valve for firmer attachment of filling tubes
- Improved flow technology results in faster priming
- Scalloped track for secure volume setting on analog dispensers
Included:
- Discharge tube
- Valve mounting/calibration tool
- ETFE and PTFE adapters (GL28, GL32, S40)
- Telescoping filling tube
- Recirculation tube (optional)
- Performance certificate
- Operating manual
Specification:
| Certifications/Compliance | ISO 9001 |
| Description | With recirculation valve |
| Volume (Metric) | 1 to 10 mL |
| Valve Spring Material | Platinum Iridium Valve Spring |
| For Use With (Application) | Dispensing acids, bases and hydrogen peroxide in the volume range from 1 to 10 mL |
| Color | White |
| Type | Dispenser |
| Display | Analog |
Specifications
| Range | Volume: 1 to 10 mL |
|---|---|
| Compliant/Standard | ISO 9001 |
| Manufacturer | Brandtech |
| Model No | 4640041 |
| Warranty | 1 year |
