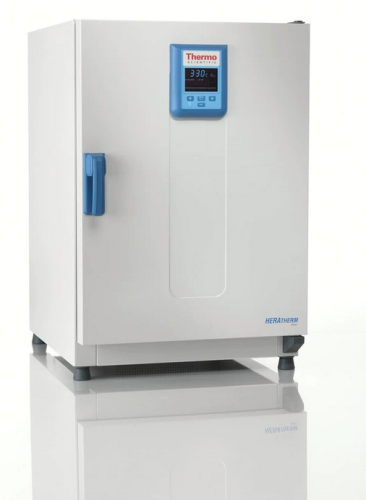

Advanced Protocol Gravity Convection Oven, 61 L/2.15 cu.ft., 50 to 330 Degrees C
Roll over image to zoom in Click on image to zoom
Advanced Protocol Gravity Convection Oven, 61 L/2.15 cu.ft., 50 to 330 Degrees C

Advanced Protocol Gravity Convection Oven, 61 L/2.15 cu.ft., 50 to 330 Degrees C

Item: 91-2330-30-EA
Request a Quote

Description

Heratherm Advance Protocol Ovens' gravity convection technology provides the user with excellent temperature values, providing flexibility, accuracy and dependability. Heratherm Advanced Protocol Ovens provide unsurpassed temperature performancethe flexible tool in the lab to be used for multiple applications.

Features:

  • Broad temperature range up to 330°C
  • Adjustable fan speed for application-related airflow in mechanical convection models (e.g. drying of powders)
  • High speed for expedited drying and heating, quick recovery, and optimal temperature stability and uniformity
  • Programmable controller for temperature ramps and dwells
  • Up to 10 programs can be saved, each with 10 discrete steps
  • Features electronically controlled fan speed and damper position
  • Programs can be repeated automatically
  • Access port allows the introduction of sensors for independent data monitoring
  • Simple calibration routine ensures temperature accuracy over time
  • Boost function enables rapid heating upno need to operate the oven 24/7

Specifications:

Convection Technology Gravity Convection
Power 120Vac, 60Hz, 1730Watts, 14.4Amp
Controller Microprocessor control with vacuum fluorescent display
Temperature Range 50° to 330°C
Temperature Uniformity ±2.5°C
Temperature Stability at 150°C ±0.3°C
Footprint 0.3 sq. m (3.2 sq. ft.)
Max. Shelf Load 25 kg (55 lbs.)
Weight 44 kg (97 lbs.)
Chamber volume 61 L (2.15 cu.ft.)
Interior   D x W x H 15.3 x 12.9 x 18.9
Exterior  L x W x H 22.2 x 20.9 x 28.3
Shelves (Supplied/Max) 2  /  13

Additional Products

Catalog No.

Convection/Size/Temp Range

91-2348-30

Gravity, 65L, 50° to 250°C

91-2348-31

Gravity, 105L, 50° to 250°C

91-2348-32

Gravity, 176L, 50° to 250°C

91-2330-30

Gravity, 61L, 50° to 330°C

91-2330-31

Gravity, 99L, 50° to 330°C

91-2330-32

Gravity, 168L, 50° to 330°C

91-2340-39

Mechanical, 710L, 50° to 330°C

91-2340-40

Mechanical, 66L, 50° to 250°C

91-2340-41

Mechanical, 104L, 50° to 250°C

91-2340-42

Mechanical, 179L, 50° to 250°C

91-2340-60

Mechanical, 62L, 50° to 330°C

91-2340-61

Mechanical, 97L, 50° to 330°C

91-2340-62

Mechanical, 170L, 50° to 330°C
