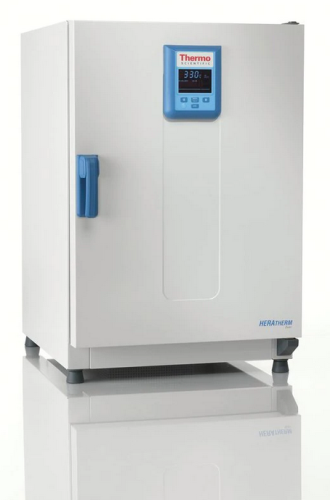

Advanced Protocol Mechanical Convection Oven, 62 L/2.20 cu.ft., 50 to 330 Degrees C
Roll over image to zoom in Click on image to zoom
Advanced Protocol Mechanical Convection Oven, 62 L/2.20 cu.ft., 50 to 330 Degrees C

Advanced Protocol Mechanical Convection Oven, 62 L/2.20 cu.ft., 50 to 330 Degrees C

Item: 91-2340-60-EA
Request a Quote

Description

Heratherm Advance Protocol Ovens' gravity convection technology provide the user with excellent temperature values, providing flexibility, accuracy and dependability.  Heratherm Advanced Protocol Ovens provide unsurpassed temperature performancethe flexible tool in the lab to be used for multiple applications

Features

  • Broad temperature rangeup to 330°C
  • Adjustable fan speed for application-related airflow in mechanical convection models (e.g. drying of powders)
  • High speed for expedited drying and heating, quick recovery, and optimal temperature stability and uniformity
  • Programmable controller for temperature ramps and dwells
  • Up to 10 programs can be saved, each with 10 discrete steps
  • Features electronically controlled fan speed and damper position
  • Programs can be repeated automatically
  • Access port allows the introduction of sensors for independent data monitoring
  • Simple calibration routine ensures temperature accuracy over time
  • Boost function enables rapid heating upno need to operate the oven 24/7

Specifications:

Convection Technology

Mechanical Convection


Power 120Vac, 60Hz, 1440Watts, 12Amp

Controller

Microprocessor control with vacuum fluorescent display



Temperature Range

 50° to 330°C

Temperature Stability at 150°C

 ±0.2°C



Footprint

0.3sq. m (3.2sq. ft.)



Max. Shelf Load

25kg (55 lbs.)



Weight

44kg (97lbs.)



Chamber volume

62L (2.20cu.ft.)



Interior   D x W x H

13.5 x 13.9 x 20.0



Exterior  L x W x H

22.2 x 20.9 x 28.3



Shelves (Supplied/Max)

2  /  13





Additional Products

Catalog No.

Convection/Size/Temp Range

91-2348-30

Gravity, 65L, 50° to 250°C

91-2348-31

Gravity, 105L, 50° to 250°C

91-2348-32

Gravity, 176L, 50° to 250°C

91-2330-30

Gravity, 61L, 50° to 330°C

91-2330-31

Gravity, 99L, 50° to 330°C

91-2330-32

Gravity, 168L, 50° to 330°C

91-2340-39

Mechanical, 710L, 50° to 330°C

91-2340-40

Mechanical, 66L, 50° to 250°C

91-2340-41

Mechanical, 104L, 50° to 250°C

91-2340-42

Mechanical, 179L, 50° to 250°C

91-2340-60

Mechanical, 62L, 50° to 330°C

91-2340-61

Mechanical, 97L, 50° to 330°C

91-2340-62

Mechanical, 170L, 50° to 330°C
