Description

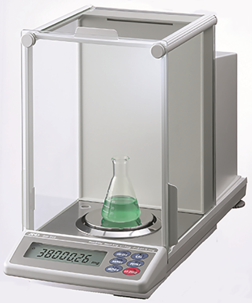

Phoenix Series GH-300 Analytical Balance with internal calibration mass, with rear motor drive assembly and anti-static glass.
Features
- 0.1mg rsolution
- Internal Calibration
- Full digital calibration
- User friendly operation
- RS-232C Bi-Directional interface
- WinCT Windows communication tools software
- GLP/GMP/GCP/ISO Compliance
- Balance ID Number
- Time and Date Function
- Data Memory Function
- Underhook capability
Specifications
|
Gram (g)
(mg)
|
320 x 0.0001
320,000 x 0.1
|
| Decimal Ounce (oz) | 11.29 x 0.00001 |
| Troy Ounce (ozt) | 10.29 x 0.00001 |
| Pennyweight (dwt) | 205.8 x 0.0001 |
| Carat (ct) | 1600 x 0.001 |
| Momme (mom) | 85.3 x 0.0001 |
| Grain Unit (GN) | 4938 x 0.002 |
| Tola (t) | 27.44 x 0.00001 |
| Tael (TL) | 8.53 x 0.00001 |
| Percentage Min Div | 0.01%, 0.1% or 1% (auto prompt) |
| Counting Min Weight | 0.1mg |
| Linearity | ±0.3mg |
| Repeatability / Std Dev | 0.2mg |
| Standardization Time | Approx. 3.5 sec (0.1mg) / 8 sec (0.01mg) |
| Sensitivity Drift (10°C - 30°C) | ±2ppm / °C (when automatic self calibration is not used) |
| Display Refresh | 5 times per second / 10 times per second |
| Pan Size | 90 mm / 3.6 inches |
|
Physical Dimensions (mm)
(in)
|
217(W) x 442(D) x 316(H)
8.54(W) x 17.4(D) x 12.24(H)
|
|
Breeze Break Dimensions (mm)
(in)
|
183(W) x 148.5(D) x 251(H)
7.2(W) x 5.84(D) x 9.88(H)
|
| Operating temperature | 5°C to 40°C (41°F to 104°F), 85% RH or less (no condensation) |
| Weight | Approx. 8.2 kg / 18 lb |
| Power | 100, 120, 220, 240 Vac (AC Adapter) 50 Hz / 60 Hz, 11 VA |
| Standard Accessories | WinCT in CD-ROM, Manual, AC Adapter |
| Ext. Cal. Mass (optional) | 100g / 200 g / 300g |
Specifications
| Manufacturer | A&D Weighing |
|---|---|
| Model No | GH-300 |
