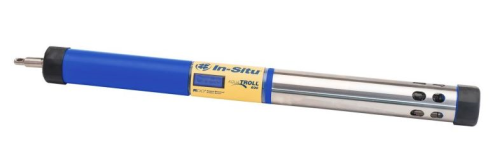

Aqua TROLL 600 Multiparameter Sonde, No Pressure Configuration, In-Situ, 0074030

In-Situ™ Aqua TROLL® 600 Multiparameter Sonde, No Pressure Configuration, 0074030

Features:

• Basic sensor configuration includes optical RDO (EPA-approved), pH/ORP, turbidity, conductivity, temperature, and pressure; also available are ISE sensors for Ammonium, Chloride, and Nitrate plus Fluorometer Sensors for Rhodamine WT, Chlorophyll a, and Blue-Green Algae sensors (Phycocyanin BGA-PC and Phycoerythrin BGA-PE) (purchase choice of up to four sensors separately)
• If more than four parameters need to be monitored at once, multiple sondes can be connected in series using optional RuggedCable® splitters (maximum of 8 splitters in one series) and all can communicate through the same cabling system
• Water level/pressure and barometric pressure are also integrated into the sonde
• Rugged, long-lasting, corrosive-resistant water quality platform: suitable for groundwater and surface water monitoring
• Accurate, reliable data provided in an easy-to-use, customizable instrument
• Can be integrated with In-Situ™ telemetry systems and HydroVu™ Data Services for real-time feedback for remote monitoring sites
• Use the Aqua TROLL® 600 anywhere: Titanium components and vented (guaged) or non-vented (absolute) pressure options are perfect for challenging environments and long-term monitoring in both fresh or salt water; engineered to be easy, reliable and cost-effective
• Save time in the field: Intutitive software simplifies instrument configuration, data analysis, and reporting; no training required, and no waiting for sensor warm-up or set-up
• Long-term pH stability: pH change is 0.0008 pH/day or a change of 0.1 pH in 125 days
• Streamline data management with smartphone mobility on Android™ devices: Set up logs and manage data from the field using the VuSitu™ Mobile App; consolidate all site information on mobile device and tag sites with photos and GPS coordinates; log data to smartphone and download results in a standard file format for profiling, low-flow sampling, and more
• Bluetooth® wireless data access to VuSitu™ Android™ App or Win-Situ™ 5 for PC/laptop
• Receive 24/7 technical support and online resources from In-Situ™
• Order products and accessories from the In-Situ™ website
• Get guaranteed 7-day turnaround service for maintenance (USA only)
• Status in an instant: LCD display gives you instant visual indication of sensor status, data log, battery life, and overall functionality to give confidence during deployment; internal memory plus onboard SD card which allows for quick and easy data backup and transfer
• No fuss antifouling: Antifouling to protect all sensors; sub-2 inch passive and active antifouling system for all sensors including conductivity
• Get accurate results: Self-compensating turbidity/RDO/level, smart diagnostics, and stable sensor technology provide minimal drift and increased accuracy; smart sensors store information internally, maintaining data and calibration within the sensor for traceable results
• RuggedCable® options in poly or Tefzel® for use in harsh environments [customized lengths available up to 1219 m (4000 ft.)]
• NIST®-traceable calibration report for guaranteed accuracy
• Dual-sided restrictor acts as storage cup between deployments and calibration cup
• Also compatible with optional low-flow system
• Low power consumption with 9+ month battery life



Applications:

• Lake, stream and wetland monitoring
• Stormwater management
• Coastal deployments
• Dam monitoring
• Low-flow groundwater sampling
• Remediation and mine water monitoring

Includes:

• Aqua TROLL® 600 Multiparameter Sonde
• Sensor options (purchase parameters required: temperature, conductivity/temperature, turbidity, optical RDO, pH/ORP, vented or non-vented level, ISE-ammonium, chloride, nitrate, fluorometer-Rhodamine WT, Chlorphyll a, Phycocyanin-BGA-PC, Phycoerythrin-BGA-PE)
• Two Alkaline D batteries
• Micro SD card
• Sensor installation tools
• Maintenance supplies
• Win-Situ™ 5 Software
• User manual
• Quick start guide
• NIST® calibration report

Please Note:

• Many options and configurations of the Aqua TROLL® 600 are available. Call to arrange a consultation with our staff today to find the best fit for your application!

Specifications:

Operating Temperature(Non-Freezing)	-5 to 50 °C (23 to 122 °F)[for ISE: Ammonium & Nitrate—0 to 40 °C; Chloride—0 to 50 °C
Storage Temperature	Components without fluid: - 40 to 65 °C (Non-freezing water) pH/ORP Sensors: -5 to 65 °C; Ammonium & Nitrate: 0 to 40°C; Chloride: 0 to 50 °C
Dimensions	60.2 cm (23.7 in.) long (including connector); 72.9 cm (28.7 in.) long (including bail); 4.7 cm (1.85 in.) outside diameter
Weight	1.45 kg (3.2 lbs)[includes, sonde, sensors, restrictor, and bail)
Wetted Materials (Sonde and Sensors)	PC, PC alloy, Delrin®, Santoprene™, Inconel™, Viton™, Titanium, Platinum, Ceramic, Nylon
Sensor Hex Screw Driver	1.3 mm (0.050 in.)
Number of Sensors	Up to four at a time
Environmental Rating	IP68 with all sensors and cables attachedIP67 without sensors and cables attached
Maximum Pressure Rating	Up to 350 PSI; Ammonium & Nitrate Sensors: up to 30 PSI
Output Options	RS-485/MODBUS, SDI 12, Bluetooth®
External Power Voltage	8-36 VDC; not required for normal operation
External Power Current †	Sleep: 0.10 mA typical; Measurement: 16 mA typical, 45 mA maximum
Internal Memory • & Micro SD Card ◊	16 MB; 8+ GB micro SD card included, user replaceable
Internal Power/Battery Life ♠	2 internal user-replaceable Alkaline D batteries/> 6 months typical with wiping or > 9 months with no wiping
Reading Rates	1 reading every 2 seconds
Data Logging	50 logs (defined, scheduled to run, or stored)
Logging Modes	Linear, Linear Average, Event
Logging Rate	1 minute to 99 hours
Communication Device	Wireless TROLL Com® or wired Troll Com®
Cable Options	Vented or non-vented polyurethane or vented Tefzel®
LCD Display	Integrated display shows status of sonde, sensor ports, data log, battery, and connectivity
Software	Android™: VuSitu® through Google Play™Windows®: Win-Situ® 5 Data Services & HydroVu®
Interface	Android™ 4.4, requires BlueTooth® 2.0; Win-Situ™ 5 software
Certifications	CE, FCC, WEEE, RoHS Compliant
Warranty ‡	2-year — sonde, RDO and sensor cap, temperature/conductivity, temperature only, turbidity, fluorometer sensors 1-year — pH/ORP, accessories90 days — ISE sensors, Other: see www.in-situ.com/warranty for complete warranty policy

† Dependent on display and wiping

• For 30 parameters > 100,000 data records, > 3 years at 15 minute interal; single data record = timestamp, temperature, RDO, pH, ORP, turbidity, and conductivity logged in linear or linear average mode

◊ Log data recorded to SD card in comma delimited variable (CSV) file formata; > 32 GB not supported

♠ Logging all sensors at 15 minute interval on 2 D Alkaline batteries — battery life dependent on site conditions and wiping

‡ Extended warranty available from 1 to 3 years (5 years total) on Sonde only

Aqua TROLL® Sensors:

Cat. No.	Mfg P/N	Description
92-1629-09	0063490	AT Temperature Sensor
92-1629-10	0063470	AT pH/ORP Sensor
92-1629-16	0063460	AT Temperature/Conductivity Sensor
92-1629-17	0063450	AT RDO Sensor w/RDO-X cap
92-1629-21	0033700	AT Ammonium ISE Sensor
92-1629-22	0033710	AT Nitrate ISE Sensor
92-1629-23	0033720	AT Chloride ISE Sensor
92-1629-24	0038900	AT Chlorophyll a Sensor
92-1629-25	0038920	AT Phycocyanin (BGA-PC) Fluorometer Sensor
92-1629-26	0038930	AT Phycoerythrin (BGA-PE) Fluorometer Sensor
92-1629-27	0038890	AT Rhodamine WT Fluorometer Sensor
92-1629-37	0063480	AT Turbidity Sensor

Other Aqua TROLL® Accessories:

Cat. No.	Mfg P/N	Description
92-1629-12	0063510	AT Sensor Port Plug
92-1629-13	0063500	AT Wiper
92-1629-14	0064630	AT Wiper Port Plug
92-1629-15	0076100	AT Copper Antifouling Restrictor Guard
92-1629-31	0053310	RuggedCable® Connector W/Male Connector End to Stripped & Tinned End
92-1629-32	0052500	TROLL Com® Bundle w/USB Connector & Software CD
92-1629-35	0020680	Conductivity Calibration Sol'n 1413 µS, 1 L
92-1629-42	0051810	Lg Desiccant w/Titanium Connector f/Vented RuggedCable Systems
92-1629-43	0031240	Wireless TROLL Com® for Aqua TROLL® & Level TROLL®
92-1629-51	0061150	Rugged Android™ 7" Tablet
92-1629-53	0029140	Desiccant Refill Kit
92-1629-71	0052000	RuggedCable® Systems for Aqua TROLL® & Other In-Situ™ Instruments
