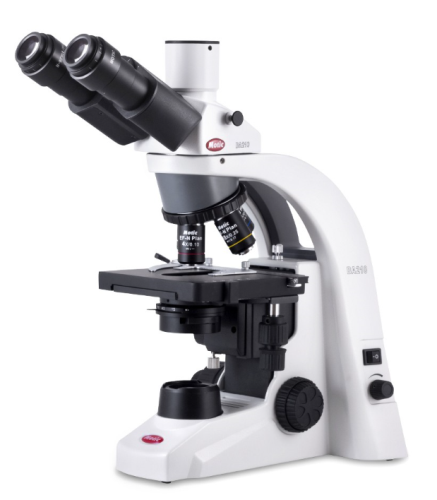

BA210 Elite Trinocular LED Microscope, Motic Instruments, Inc., 1100100402621

Motic Instruments Inc® Model BA210 Elite Trinocular LED Microscope, 1100100402621

Components:

• Optical system: Colour Corrected Infinity Optical System (CCIS ®)
• Observation tube: Trinocular head, Siedentopf type
• Inclination: 30 degree inclined, 360 degree rotating
• Trinocular light split: 100:0/20:80
• Interpupillary distance: 55-75 mm
• Diopter adjustment: On both eyepieces, +/- 5 diopter
• Eyepieces: Widefield N-WF10X/20mm with diopter adjustment
• Nosepiece: Reversed quadruple
• Objective classification: CCIS ® EC Plan Achromatic, DIN
• Objectives: 4X/0.10 (WD 15.9 mm), 10X/0.25 (WD 17.4 mm), 40X/0.65/S (WD 0.5 mm), 100X/1.25/S-Oil (WD 0.15 mm)
• Objective mounting thread: W 4/5 in. x 1/36 in. (RMS standard)
• Stand type: Upright
• Stage: Mechanical stage with built-in low position rackless coaxial stage control and sample holder
• Stage size: 150 x 150 mm
• Travel range, X&Y: 80 x 30 mm
• Condenser: Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
• Diaphragm: Iris diaphragm
• Focus mechanism: Coaxial coarse and fine focusing system with tension adjustment
• Fine focus precision: 2 μm
• Focusing stroke: 20 mm
• Upper limit stop: Upper limit stop preset but adjustable
• Filter holder: On top of the illuminator with fixing cap
• Transmitted illumination: Quartz halogen 6 V/30 W with intensity control
• Illumination interchangeability: Quartz halogen 6 V/30 W or LED 3 W
• Transformer: Internal
• Accessories included:
  • Dust cover
  • Power cord
  • Allen key
  • Immersion oil (5 ml)
  • Blue filter
  • Spare fuse
  • Cord hanger
  • Thumb screw
