Description

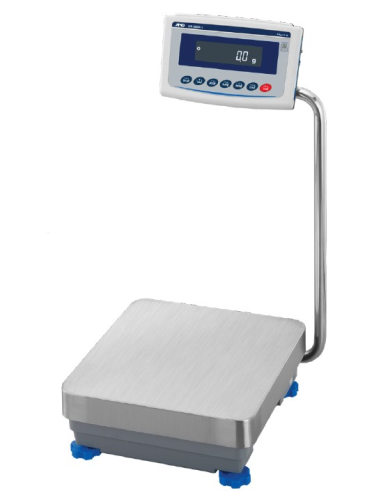

A&D Weighing® Apollo® Balance, Apollo High Capacity Precison, Internal Calibration, Swing-Arm Display, 102000 g X 1 g, GX-102000L
Features:
- Designed for industrial applications that require laboratory accuracy with industrial protection — IP65 dust and washdown rating
- Available with either a display mounted on a swing arm that allows adjustment of display position or a detached display that can be mounted on the wall or set on benchtop
- Comes standard with RS232 and bi-directional USB (cable included)
- Internal calibration which can be set for automatic re-calibration for execution conditions such as temperature change or time interval
- Blinking TILT function alert user to adjust balance leveling legs
- Password protection for user access control
- Impact Shock Detection alarms to warm of shock that can cause damage to balance
Specifications:
| Capacity | 102000 g |
| Readability (d) | 1 g |
| Repeatability (Standard Deviation) | 1 g |
| Minimum Unit Weight | 1.4 kg |
| Lineraity | +/- 2 g |
| Stabilization Time (Typical When Set to FAST) | Approximately 1.5 seconds |
| Sensitivity Drift (10 to 30 degrees C / 50 to 86 degrees F, When Automatic Self Sensitivity Adjustment if off | +/-6 ppm/degree C |
| Operating Environment | 5 to 40 degrees C / 41 to 104 degrees F, 85% Relative Humidity or Less (Non-condensing) |
| Accuracy Immediately After Interal Sensitivity Adjustment | +/- 10 g |
| Data Memory | 200 weighing results + 50 sensitivity adjustment/calibration test results (with timestamps), 50 unit masses for counting mode, 20 sets of upper/lower limit values for comparator mode, and 20 tare values |
| Display Refresh Rate | 5 times/second, 10 times/second or 20 times/second |
| Units of Measure | g (gram), kg (kilo gram), oz (ounce), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), pcs (counting mode), % (percent mode), DS (density mode), and a user-programmable unit |
| Communication Interface | RS-232C (D-Sub 9-pin) and USB (mini B) |
| Applicable Calibration Weight Value | 5 kg, 10 kg, 20 kg, 30 kg, 40 kg, 50 kg, 60 kg |
| Weighing Pan Size | 15.2 x 13.5 in. |
| External Dimensions, W x D x H | Swing Arm Type (GX-L): 14.6 x 24.2 x 5.1 in. Detachable Type (GX-LS): 13.5 x 17.4 x 5.1 in. |
| Net Weight | 17 kg |
| Display Type | Reverse Backlit LCD (Character height: 0.7 in.) |
| Dust and Waterproof Rating | IP65 |
| Power Supply / Consumption | AC adapter / approximate 30 VA |
| Standard Accessories | Display Cover, AC Adapter, USB Cable (6 ft.) and Cable Clamp x 2 |
Specifications
| Capacity | 102000 g x 1 g |
|---|---|
| Power | AC Adapter (120 V / 60 Hz) approximately 30 VA |
| Application | GX-102000L |
| Accuracy | Linearity: +/- 2 g |
| Compliant/Standard | IP65, GLP/GMP/GCP/ISO-compliant |
| Operating Environment | 5 to 40 degrees C (41 to 104 degrees F), 85% Relative Humidity or less (no condensation) |
| Connectivity | RS-232C (D-Sub 9-pin) and USB (mini B) |
| Other | Repeatability (standard deviation) 1 g |
| Other | Pan: 15.2 in. x 13.5 in. |
| Dimensions | W x D x H: 14.6 in. x 24.2 in. x 5.1 |
| Weight | 17 kg |
| Manufacturer | A&D Weighing |
| Model No | GX-102000L |
