Description

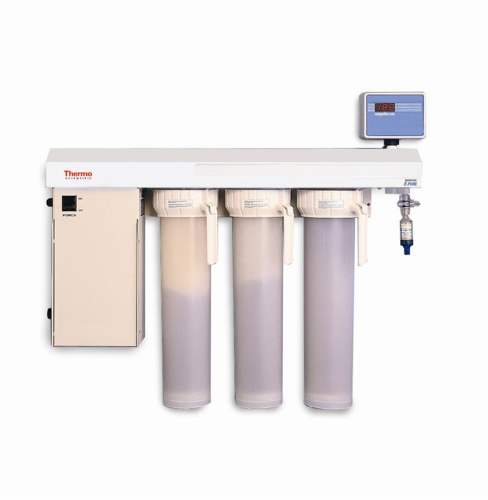

Barnstead E-pure systems meet ASTM, CAP, and NCCLS requirements for bacteria free, Type I reagent grade water. These Systems produce up to 2 liters per minute of 18.2 megaohm-cm Type I Reagent Grade water. E-Pure 3 Module System is for use with pretreated water (without cartridges) and final filter. Features:
- Larger cartridges mean increased cartridge life and increased system flow rate.
- 1/4 turn quick release canister.
- Lowest operating cost of any system on the market.
- Resistivities up to 18.2 megohm-cm and TOC levels below 10 ppb.
- High flow rates.
- Recirculation pump ensures water purity.
- A digital resistivity meter (included) indicates water purity.
- A built-in, whisper-quiet recirculation pump with pressure regulator ensures Type I reagent grade water on demand.
- Virgin polypropylene water pathways prevent recontamination.
- Inert wetted parts prevent contamination of purified water.
- Wall mounted- completely assembled for easy installation.
- 0.2 micron absolute final filter removes bacteria and particulates that could alter your results.
- High capacity cartridges provide low operating cost.
- Digital resistivity meter is automatically temperature compensated to 25°C, preventing fluctuating resistivity readings due to temperature changes.
- Recirculation pump continuously recirculates water throughout the entire system to maintain water purity and reduce the quantity of waste water required for rinse-up.
| Resistivity | 18.2MV-cm at 25°C | |
| Conductivity | 0.055μS/cm | |
| Feedwater Source | tap or pretreated | |
| Max flow rate | Up to 2.5 liters per minute | |
| Total Organic Carbon | <10ppb | |
| Bacterial Content | <1CFU/mL | |
| Particles >0.2μM/mL | < 1μM/mL | |
| TOC Monitor with UV Intensity Monitoring | No | |
| Feedwater Monitoring | No | |
| Inlet pressure | Max | 100 psi |
| Min | 5 psi or gravity feed | |
| Inlet water temperature | 40 to 120°F (4 to 49°C) | |
| Inlet port | 1/4" NPT(F) | |
| No. of holders | 3 | |
| Dimensions, L x W x H | 7.5 x 29 x 28 in.(19 x 74 x 71 cm) | |
| VAC | 240 | |
