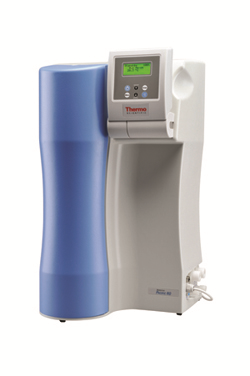

Barnstead Pacific RO (Reverse Osmosis) System, 40 L/hr., Thermo Scientific 50132389

Features:

• Five system options with permeate flows of  3, 7, 12, 20, or 40 L/hr.
• Space-saving design allows system to sit on the laboratory bench or be mounted on the wall.
• Simple system upgrade accommodates future pure water capacity requirements

Reliable operation:

• Microprocessor control offers automatic operation with continual monitoring of all important parameters
• Required filling level of the reservoir can be customized
• Automatic return to operating mode ensures recirculation during periods of standstill

Easy-to-operate clear display:

• Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing
• Status of current operating mode clearly indicates ""production"" , ""stand-by"" , ""cleaning""modes
• Reservoir fill-level shown as %

Integrated feed water monitoring:

• Good quality fee water is a prerequisite for high purity water and extends cartridge service life

GLP-compliant documentation:

• Real-time clock records system errors and faults
• Ongoing data storage collects four weeks information displayed in clear text
• Operating system is code-protected to prevent unauthorized changes to system settings
• RS-232 interace with adjustable sender interval allows for customized timing of data transmission of measured values and faults to a PC or data printer
• Cell constant of 0.16 cm¯¹ ensures precise conductivity measurements

Pacific RO pretreatment:

• Two 10 in. (25.4 cm) cartridge filter housings with a 5 µm prefilter plus activated carbon to prevent entry of particles greater than 5 µm and high concentrations of free chlorine—includes hardness stabilizer cartridge which binds calcium and prevents its precipitation

Worry-free pure water storage:

• Reservoir are constructed of pigment-free polyethylene
• Conical bottom allows for easy cleaning, disinfecting and complete emptying

Optional Hand Dispenser:

• Gain increased flexibility by adding a hand dispenser with 3 meter cord which connects to tank
• Use only with a tank equipped with a pressure pump (Part # 06.5032, 06.5062, or 06.5082)
• Ships with a 0.2 micron final filter (Part # 50138221)

Supplied with:

• Integrated wall bracket
• RO Membrane(s)—2 required for 20 and 40 L/hr systems
• Pressure Regulator







Specifications:

Operating pressure min./max.	1.5 to 6 bar
Bacterial retention	99%
Electrical requirements	230V, 50/60Hz
Power consumption	0.1kW
Feedwater Connector	3/4 in. NPT
Dimensions (D x W x H)	330 x 372 x 603mm
Weight	21kg
Temperature min./max.	2° - 35°C



Additional Models:



92-2750-59	3 L/hr Pacific RO System
92-2750-61	7 L/hr Pacific RO System
92-2750-62	12 L/hr Pacific RO System
92-2750-63	20 L/hr Pacific RO System
92-2750-64	40 L/hr Pacific RO System
