Description

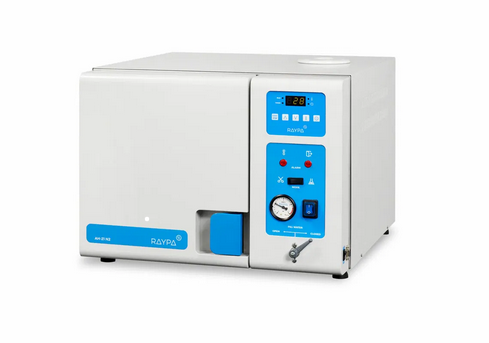

Raypa® Benchtop Autoclave, AHS-N Series Front Loading without Drying Cycle, 22 L, AH-21-N2
Features:
- Sterilization chamber made of AISI-316L stainless steel extremely resistant to corrosion
- Equipment controlled by digital PID microprocessor, cycles adjustable by sterilization time and sterilization temperature
- Alphanumeric LCD screen that shows sterilization parameters and several alert and error messages
- Several languages are available and temperature display is compatible with ºC or ºF temperature scales
- Sterilization control by a PT-100 Class A temperature probe located within chamber
- Heating by powerful heating elements made of Incoloy® 825 extremely resistant to corrosion
- Manual switch to choose between solids or liquids sterilization procedures
- Independent water tank of 6 L
- Manual valve to feed water from independent tank to sterilization chamber
- Screw to drain sterilization chamber water tank and to clean drainage filter
- Manual valve to drain independent water tank
- RS-232 port to connect to PC
- Sterilization chamber inlet for validation probes Push-handle to open main door 4 rubber feet adjustable by height
- Adjustable sterilization temperature: 100 - 134 ºC
- Adjustable sterilization time: 1 - ∞ min
- Adjustable delayed start: 1 - ∞ min
- Customization is available
- Accessories are also available
Includes:
- Stainless steel tray support compatible with up to 4 trays*
- 3x stainless steel wire trays
- Holding clamp to move trays
- Auxiliary plastic tray for collecting condensed water after opening door
- Silicone tube of 1 m with fast connection to drain independent water tank
- Stainless steel protecting grid for heating elements
Specifications
| Range | Sterilization Temperature: 100 - 134 degrees C |
|---|---|
| Range | Maximum Pressure: 2,1 Barg |
| Capacity | 22 L with 6 L built-in water tank |
| Material | Chamber: AISI-316L stainless steel, Incoloy elements, silicone gasket |
| Power | 230 V/50-60 Hz/2000 W |
| Application | Suitable to sterilize plastics, small metal utensils, lab waste bags, culture media, glassware, and liquids |
| Compliant/Standard | EN-61010-2-040 Part 2-040, EN-61326, EN-61010-1, AD 2000 Merkblatt, 2014/35/UE, 2014/30/UE, 2014/68/UE |
| Connectivity | RS-232 to PC or Printer OR integrated printer available |
| Other | Supports up to 4 trays (tray size: 190 mm length x 350 mm depth) |
| Other | External Dimensions: L x D x H: 560 x 680 x 425 mm |
| Dimensions | Chamber: 210 mm diameter x 430 mm depth |
| Weight | 45 kg |
| Manufacturer | Raypa |
| Model No | AH-21-N2 |
