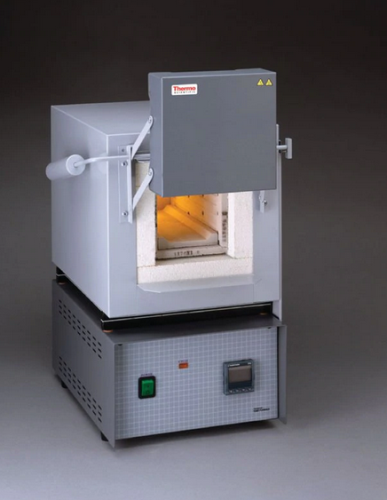

Benchtop Industrial Furnace, 136 cu.in., 120 V, with Digital Programmable Controller, Model FD1545M
Roll over image to zoom in Click on image to zoom
Benchtop Industrial Furnace, 136 cu.in., 120 V, with Digital Programmable Controller, Model FD1545M

Benchtop Industrial Furnace, 136 cu.in., 120 V, with Digital Programmable Controller, Model FD1545M

Item: 18-2710-12-EA
UOM: EA (1)
Price:
$5,480.00

Description

The 136 cubic inch (2.2 liters) capacity Thermo Scientific Benchtop Industrial Furnace reaches a 1200°C maximum temperature. Heavy-duty firebrick insulation surrounds the opening for added durability.
   Product Detail

The rugged Thermo Scientific Benchtop Industrial Furnace is designed with multiple safety features and includes a choice of two temperature control options. Safety
  • Counter-weighted door swings upward, directing heat away from you.
  • Four individual embedded elements in special refractory cement permit excellent heat distribution in the chamber.
  • For added protection, door safety switch stops power to the heating elements when you open the door.
  • Adjustable Alarm or Over Temperature Protection (OTP) setting can be used to protect the furnace or loaded chamber from excessive heat.
  • Thermocouple break protection cuts power to the heating elements, preventing a thermocouple failure runaway condition.
  • Rear of the chamber incorporates a 0.38 (0.95 cm) diameter port for monitoring chamber temperatures with independent measuring devices.
  • 120V models require fixed wiring (no power cord).
C1 Controller
  • Digital programmable control with 1 stored program and 8 segments
  • Ramps to vary heat-up rate and dwell cyles to hold temperature at set levels from 0.1 to 999.9 minutes
  • "Holdback" feature "holds" program until furnace temperature heats up or cools down to preprogrammed parameters—program will never outrun furnace performance
  Specifications:

Capacity (heating area) 2.2 L (0.08 cubic foot)
Temperature range 100 to 1,200 Degrees C
Electrical requirements 120V; 50/60 Hz
Power consumption 2,230 watts; 18.6 amps
Weight 23.5 kg (52 lb.)
Interior dimensions 22.8 x 10.1 x 9.5cm/9 x 4 x 3.75 in. (D x W x H)
Exterior dimensions 45.7 x 27.9 x 41.9cm/18 x 11 x 16.5 in. (L x W x H)
Standards met cUL, UL listed
Manufacturer's warranty 12 months

Supplied with:
  • Platinel™ II Thermocouple
  • Ceramic hearth plate to protect the bottom heating element
Note:
  • 120V models require fixed wiring and are not supplied with a power cord.
