Description

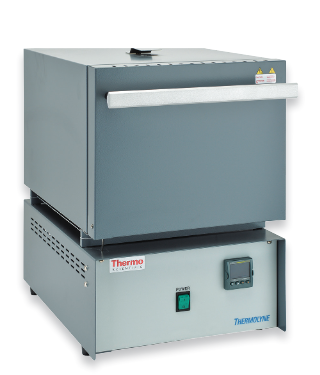

Model F48010-33 Benchtop Muffle offers a maximum temperature range of 1200°C. It is perfect for everyday laboratory use. Provides 350 cubic inches of heating area; a ceramic shelf is included to double furnace load capacity. It has built-in vent port which removes undesirable contaminants and moisture which extends the life of the element and the unit. Applications:
- Heat treating.
- Sintering.
- Gravimetric analysis.
- Quantitative analysis.
- Digital single set point control. A single display shows actual temperature or set point.
- Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient ceramic insulation.
- The rear of the chamber incorporates a 0.38" (0.95 cm) diameter port for monitoring chamber temperatures with independent measuring devices.
- Two open coil heating elements on sides of chamber assure fast heat-up, with minimum temperature gradient.
- Door safety switch protects operator by removing power to the heating elements upon opening the door.
- Thermocouple break protection cuts power to the heating elements, prevents a thermocouple failure runaway condition.
- A1 Controller which a digital single setpoint controller.
- Single display shows actual temperature or setpoint.
| Capacity (heating area) | 5.8 L (0.2 cubic foot) |
| Temperature range | 100 to 1,200 Degrees C |
| Electrical requirements | 240V 50/60 Hz |
| Power consumption | 1,560 watts |
| Weight | 27.2 kg (60 lb.) |
| Interior dimensions | 13 x 18 x 25 cm/5 x 7 x 10 inches (H x W x D) |
| Exterior dimensions | 49 x 34 x 50 cm/19 x 13.3 x 19.5 inches (H x W x D) |
| EMC standards met | CE, European Standards (EN) 61000-3-2, EN 61000-3-3, EN 61326-1 |
| Safety standards met | EN 61010-1, EN 61010-2-010 |
| Manufacturer's warranty | 12 months |
