Description

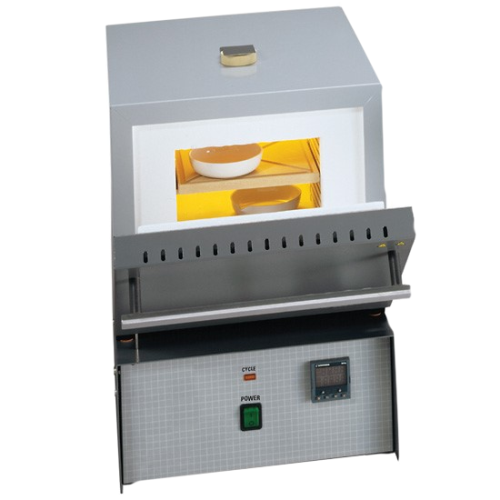

Model F48028 Benchtop Muffle offers a maximum temperature range of 1200°C. It is perfect for everyday laboratory use. Provides 350 cubic inches of heating area; a ceramic shelf is included to double furnace load capacity. It has built-in vent port which removes undesirable contaminants and moisture which extends the life of the element and the unit. Applications
- Heat treating.
- Sintering.
- Gravimetric analysis.
- Quantitative analysis.
- Digital single set point control wtih a single ramp to set point and a dwell. A single display shows actual temperature or set point. Furnaces with this control also have a mechanical Over Temperature Protection relay.
- Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient ceramic insulation.
- The rear of the chamber incorporates a 0.38" (0.95 cm) diameter port for monitoring chamber temperatures with independent measuring devices.
- Two open coil heating elements on sides of chamber assure fast heat-up, with minimum temperature gradient.
- Door safety switch protects operator by removing power to the heating elements upon opening the door.
- Thermocouple break protection cuts power to the heating elements, prevents a thermocouple failure runaway condition.
- B1: Digital single setpoint control with a single ramp to setpoint and a dwell
- Single display shows actual temperature or setpoint
- Mechanical over-temperature protection relay is included
| Capacity (heating area) | 5.8 L (0.2 cubic foot) |
| Temperature range | 100 to 1,200 Degrees C |
| Electrical requirements | 208V; 50/60 Hz |
| Power consumption | 1,560 watts; 7.5 amps |
| Weight | 27.2 kg (60 lb.) |
| Interior dimensions | 13 x 18 x 25 cm/5 x 7 x 10 inches (H x W x D) |
| Exterior dimensions | 49 x 34 x 50 cm/19 x 13.3 x 19.5 inches (H x W x D) |
| Standards met | CE |
| Manufacturer's warranty | 12 months |
Supplied with:
- Power cord
- Hearth tray
