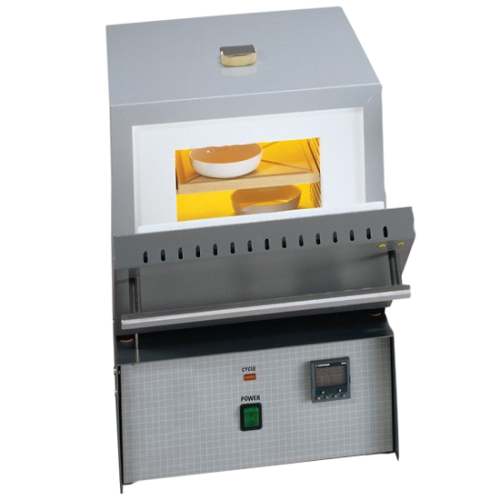

Model F48050 Benchtop Muffle offers a maximum temperature range of 1200°C. It is perfect for everyday laboratory use. Provides 350 cubic inches of heating area; a ceramic shelf is included to double furnace load capacity. It has built-in vent port which removes undesirable contaminants and moisture which extends the life of the element and the unit.Applications
- Heat treating.
- Sintering.
- Gravimetric analysis.
- Quantitative analysis.
Features
- Digital programmable control with 4 stored programs, 16 segments per program. Also includes RS-232 communications. Furnaces with this control also use a mechanical Over Temperature Protection relay. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient ceramic insulation.
- The rear of the chamber incorporates a 0.38" (0.95 cm) diameter port for monitoring chamber temperatures with independent measuring devices.
- Two open coil heating elements on sides of chamber assure fast heat-up, with minimum temperature gradient.
- Door safety switch protects operator by removing power to the heating elements upon opening the door.
- Thermocouple break protection cuts power to the heating elements, prevents a thermocouple failure runaway condition.
SPECIFICATIONS
|
Overall Dimensions D |
19.5 (49.5) |
|
Overall Dimensions H |
19 (49) |
|
Overall Dimensions W |
13.3 (34) |
|
Uniformity at 1000 |
± 3.6°C |
