Description

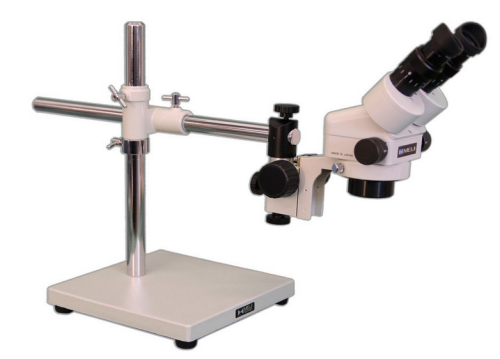

Meiji Techno America® Binocular Stereomicroscope with SWF 10X Eyepieces, PKL 1 Pole Stand & F Focusing Mount, EMZ-5/PKL1/F
Features:
- EMZ-5 body delivers sharp, high-contrast images and excellent zoom range of 6.5:1 that provides exceptionally high-resolution images all throughout the zoom range
- EMZ-5 employs Greenough optics, for improved image flatness and contrast
- As result, images are brighter and more distinct at periphery of field of view
- With large zoom range, EMZ-5 offers high resolution observation in precision-oriented semi-conductor, medical device and routine inspection
- In addition to its compact design and versatility, wide variety of auxiliary lenses and stands are available to allow user to customize their desired working distance to adapt to almost any application
- S-4100 Ergonomic boom stand with pillar, crossarm and 20 mm drop down mounting post accepts F, FX or FC holders (FX is included) or focus blocks with 20 mm mounting hole which are commonly available from microscope manufacturers
- Equipped with 400 mm (15.74 in.) vertical pole and a 530 mm (20.86 in.) horizontal pole
- Offers minimal space requirement and greatest possible amount of work room
- Can swing out of way easily, clearing workstation for other tasks
- Horizontal arm can be moved freely left to right or can be securely locked into position with T handle knobs
- Extra length vertical posts are available in other models
- Vertical column is used to compensate for taller specimen heights to accommodate working distances of different microscope bodies
- Anti-rotation is stablilized by locking pin on vertical post
- Boom stand provides comfortable amount of space for preparing mice, insects and other model organisms or semiconductor and electrical components Equipped with 35 lbs. base
- Boom stand is designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies
- Affordable; low cost with high quality safety features which makes this boom stand unmatched value in its class
- Has ample height and long reach to work on and inspect small to large parts under microscope
- Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless steel columns makes this boom stand excellent choice in labs and production facilities
- FX focus Focus holder with integral, adjustable illuminator port and rack and pinion mount which allows smooth, precise focusing over 55 mm of travel
- Coarse focus mechanism incorporates slip clutch and tension adjustment
- Fits 20 mm diameter, 71 mm long mounting post
- 84.2 mm diameter opening accepts all EM Series stereo bodies
Specifications
| Manufacturer | Meiji Techno America |
|---|---|
| Model No | EMZ-5/S-4100/FX |
