Description

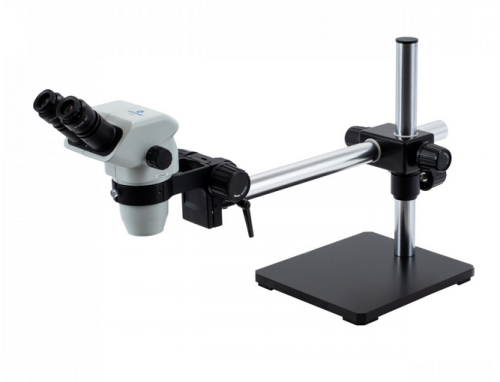

Accu-Scope® Bionocular Zoom with 10X Eyepieces/Boom Stand/Coarse Focus Mount, 3075-BS
Features:
- Optical System:
- Greenough
- Viewing Head:
- Binocular or Trinocular viewing head, inclined 45 degree
- Interpupillary distance adjustment 54-76 mm, diopter adjustment +/- 5
- Eyepieces:
- WF10 focusable eyepieces, 22 mm field of view
- Eyeguards included
- Objectives:
- Zoom magnification objective 0.67x – 4.5x
- Anti-fungal treatment protects optical system in hot, humid environments
- Focusing System:
- Dual focusing knobs with adjustable tension control
- Stand:
- Universal boom stand with Delrin® inserts in focus block for extra smooth movements
- Horizontal arm with bonder port
- Bonder arm with 76 mm diameter pod holder
- 5/8 in. mounting pin
- Base dimensions: 10 x 10 in.
- 14 3/8 in. vertical post
- 20 3/8 in. horizontal post
- Accessories:
- Dust cover
- Instruction manual
- Certification:
- ISO 9001: 2018
- ISO 14001: 2018
- Warranty:
- 5-year limited warranty for parts, labor and electronic components
- Shipping size:
- Box 1: 18 x 15 x 13 inches
- Box 2: 23 x 14 x 8 inches
- Shipping weight:
- Box 1: 8 lbs
- Box 2: 34 lbs
Specifications
| Range | Zoom magnification: 0.67 x - 4.5 x objectives |
|---|---|
| Compliant/Standard | ISO 9001: 2018 and ISO 14001: 2018 |
| Manufacturer | Accu-Scope |
| Model No | 3075-BS |
| Warranty | 5 years for microscope parts/labor/electronic components |
