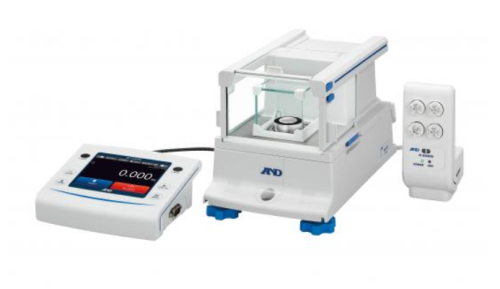

Borealis Dual Range Microbalance, 2.1 g x 0.001 g / 6.2 g x 0.01 g with Touch Screen Display, Automatic Doors and Internal Calibration, A&D Weighing, BA-6DTE

A&D Weighing® Borealis® Dual Range Microbalance, 2.1 g x 0.001 g / 6.2 g x 0.01 g with Touch Screen Display, Automatic Doors and Internal Calibration, BA-6DTE

Features:

• 5-inch wide color touch screen that enables intuitive operation (for BA-T series) — offers maximum operability, enhanced functionality and broader range of solutions
• BA series has standard reverse-backlit LCD, and is suitable for users who only require core functionality
• Auto-Self Internal Calibration feature to adjust for temperature variations, ensuring consistent results
• Standard external ionizer helps to eliminate errors due to static electricity in either sample or container (optional in Models BA-225/225D/125D) — glass panes of breeze break coated to block outside static
• Automatic doors controlled by IR sensors allow for smooth and efficient access to the weighing chamber
• Pump and air cylinder actuator mechanism — more quiet and durable than conventional motor actuators
• Detachable breeze break unit for fast, simple cleaning — panes are easily separable — no grooves for sliding doors eliminates dirt accumulation
• Inner breeze break for 0.001 mg models to increase stability (patent pending)
• Touch screen provides visual instruction on which leveling foot (feet) to rotate in which direction(s) depending on position of air bubble on level indicator (BA-T series)
• Impact shock detection (ISD) providing feedback to prevent damage to weight sensor
• AD-Just – Automatic self sensitivity adjustment using internal weight
• Balance can be set to calibrate and adjust its sensitivity automatically using its internal weight to ensure consistent measurements even in changing environments
• With internal repeatability test, it is also possible to have balance test and calculate standard deviation using its internal weight to quickly assess performance under a given environment
• All BA-T balances can perform daily or periodic diagnostic checks to confirm leveling, environmental conditions and accuracy as well as to utilize Smart routine check (SRC) function
• To protect data integrity, users can be classified into four levels using User access control (UAC) to protect against unauthorized changes and up to 100 users can be registered (including administrator)
• BA-T can display/save up to 1,000 events such as log-in/log-out history, changes to settings and sensitivity adjustment history — once full, it can save to a USB drive to display in CSV format
• Minimum weight setting and alert functions
• History information for log-in/log-out, operation, sensitivity adjustment, and impact shock detection (ISD) (for the BA-T series)
• Data memory function (for the BA series)
• Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
• GLP/GMP/GCP/ISO compliant output to meet documentation requirements
• Universal Flexi Coms (UFC) to customize printout content and layout — for editing and sending UFC setting commands
• Formulation mode for quick, accurate weighing of multiple samples to mix (for BA-T series)
• HPLC mode for preparing buffer solutions for high-performance liquid chromatography (for BA-T series)
• Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
• Percent mode function for target weighing or checking sample variation
• Statistical calculation function (SCF) to facilitate the analysis of measurements (for BA-T series)
• Auto power ON and OFF functions
• Underhook for weighing a magnetic material as well as measuring density
• Industry leading 5-year A&D warranty

Specifications:

Capacity	2.1 g / 6.2 g*ii
Readability	0.001 mg / 0.01 mg
Repeatability (standard deviation)*iii	0.0025 mg (for 1 g) 0.01 mg (for 6 g)
Stabilization Time (Typical When Set to FAST)	Approx. 10 secs / 10 secs
Internal Weight *v	Approx. 5 g
Display Unit	5-inch WVGA, TFT LCD color touch screen (resistive type) with two IR sensors
Display Language	English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Korean, Chinese, Japanese
Counting mode Minimum Unit of Weight	0.1 mg
Counting Mode Number of Samples	10 to 100 pieces
Communication Interface	RS-232C (D-Sub 9P), USB-A, USB-B (mini B), Ethernet (TCP/IP), External key input × 2, Bluetooth®*vi
Applicable Weights for Calibration Test/Sensitivity Adjustment	Any weight between 1 and 5 g
Weighing Pan Size	Ø25 mm
Standard Accessories	External ionizer × 1, Three sizes of aluminum analytical pans × 10 each*vii, Filter weighing pan (Ø50 mm) × 1*vii, Tweezers for calibration weight × 1, Micro spatula × 1
Sensitivity Drift	±2 ppm/°C (10 to 30 °C/50 to 86 °F, when automatic self sensitivity adjustment is OFF)
Display Refresh Rate	5 times/sec or 10 times/sec
Units of measure*i	mg (milligram), g (gram), oz (ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), and % (percent mode)
Percent Mode Minimum 100% Reference Mass	10.0 mg
Percent Mode % Readability	0.01%, 0.1%, 1% (depends on the reference mass stored)

*i Either tael (Singapore/HK jewelry/Taiwan) or tola can be added upon request.

*ii Smart range function: Automatically switches between the precision and standard ranges. Changes back to full precision range when the RE-ZERO (tare) operation is implemented.

*iii Repeatability can worsen depending on the environmental conditions and operator skills.

*iv Pursuant to the United States Pharmacopeia (USP), Chapter 41

*v The mass of the internal weight may change over time due to on-site environmental conditions and/or degradation with age.

*vi The Bluetooth® function (GATT/HOGP) is currently enabled for the US, Canada and Japan only.

*vii For the 0.001 mg models
