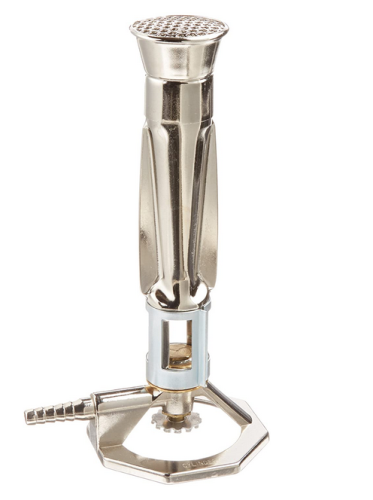

Burner, LP Gas, High Temperature, 10980 BTU, 1-1/2 in. Mixing Tube Diameter, 8-1/2 in. High, Humboldt, H-5600
Roll over image to zoom in Click on image to zoom
Burner, LP Gas, High Temperature, 10980 BTU, 1-1/2 in. Mixing Tube Diameter, 8-1/2 in. High, Humboldt, H-5600

Burner, LP Gas, High Temperature, 10980 BTU, 1-1/2 in. Mixing Tube Diameter, 8-1/2 in. High, Humboldt, H-5600

Item: 90-3690-01-EA
UOM: EA (1)
Price:
$95.00

Description

High-Temperature LP (Cylinder) Gas BurnerFeatures:
  • One-piece, nickel-plated Venturi Tube with Meker Top
  • Die cast, nickel-plated, zinc alloy octagonal base provides stability
  • Meker-type burners form uniform blue cones of intense heat with no backflashes when an extremely hot flame is required
  • 1-1/2 (38 mm) Mixing Tube O.D.
  • 5/16 (7.9 mm) Inlet O.D.
  • 4.5 CFH/10980 BTU Maximum Output‡
  • 8-1/2 (216 mm) Overall Height
‡Note:  CFHs and BTU Outputs are figured on 5 water column pressures
