Description

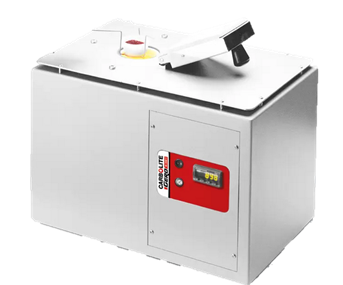

Verder Scientific® Carbolite-Gero® Free Swelling Index Furnace with 2132 Controller and Digital Over Temperture Protection, 120 V, SNF-120SN/2132/TMP-DIGOT-F
Features:
- For testing the free swelling index number of coal
- Also known as the crucible swelling number
- For testing to BS ISO 501:2012 and ASTM D720-91(2010)
- 30mA (RCD) residual current circuit breaker, protects the operator (because the test requires operation with the door open during heating)
- Precise PID temperature control using 2132 controller
- Supplied with wire crucible holder
- Accessory crucibles and lids available separately
- Range of sophisticated digital controllers, multi-segment programmers and data loggers is available—can be fitted with RS232, RS485 or Ethernet communications (Specify when ordering)
- Over-temperature protection (recommended to protect valuable contents & for unattended operation) (Specify when ordering)
- Spare parts available separately or in a kit comprising; thermocouple, thermocouple sheath, heating element, solid state relay (SSR) and door insulation piece (Specify when ordering)
Specifications:
| External Crucible Height | 26 mm |
| External crucible diameter (mm) | 41 mm |
| Internal crucible diameter at the base (mm) | 11 mm |
| Thermocouple type | K |
| Maximum power (W) | 800 W |
Specifications
| Range | Maximum Temperature: 900 degrees C, Continuous Operating Maximum Temperature: 850 degrees C |
|---|---|
| Power | 120 V / 60 Hz / Single Phase |
| Dimensions | 330 x 410 x 300 mm |
| Weight | 26 kg |
| Manufacturer | Verder Scientific |
| Model No | SNF-120SN/2132/TMP-DIGOT-F |
