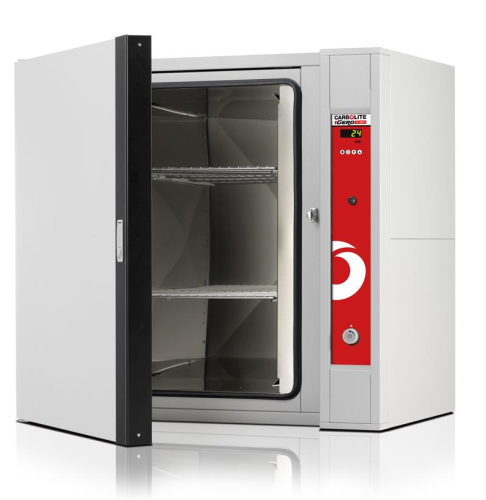

Verder Scientific's Caroblite®-Gero Peak Series Fan Convection Laboratory Oven, 300 °C Maximum Operating Temperature, 66 L, 1500 W, 110-120V Single Phase, PF060-120SNFan convection ovens provide greater temperature uniformity and faster recovery rates than natural convection ovens.Features:
- 300 °C (PF 30 to PF 200) or 250 °C (PF 400, PF 800) maximum operating temperatures
- RS PID controller (other optional controllers available upon request)
- 28 to 910 litre chamber volumes available
- Fan convection for rapid heating & recovery−excellent uniformity
- Stainless steel liner is chemically resistant
- Equipped with 2 nickel-chrome plated wire shelves (PF 400 is supplied with 3 wire shelves and PF 800 is supplied with 3 stainless steel perforated shelves)
- Door has a lever latch and air-tight silicone seal to provide additional temperature uniformity
- Compliant with safety standard BS EN 61010-2-010:2003
- Variety of options available such as digital controllers, data loggers, over-temperature protection, access port for independent thermocouple or cables, extra shelves, variable fan speed, stoving & curing options, view window, interior light, air exhaust fan, moisture extraction, stacking frame, lockable door, fixed or castor floor stands, low voltage for use below 220V
Specifications:
| Maximun operating temperature (°C) |
300 |
| Minimum operating temperature (°C) |
Ambient + 30 |
| Volume (litres) |
66 |
| Temperature stability (°C) |
± 0.2 |
| Temperature uniformity (°C) |
±5.0 @ 300 °C |
| Heat-up time (mins) |
36 |
| Recovery time (mins) |
4 |
| Dimensions: Internal H x W x D (mm) |
400 x 390 x 420 |
| Dimensions: External H x W x D (mm) |
570 x 765 x 570 |
| Shelves fitted / accepted |
2 / 5 |
| Shelf loading each / total (kg) |
10 / 30 |
| Configuration |
Bench-top |
| Air changes / hr |
21 / 153* |
| Maximum power (W) |
1500 |
| Holding power (W) |
775 |
| Weight (kg) |
45 |
* When equipped with optional exhaust fan (Uniform volume is smaller than total chamber volume, maximum power and heat-up times based on a 240 V power supply)
Other Sizes Available:
| 91-2341-01 |
PF30, 28L, 1000W, 300°C Max |
| 91-2341-02 |
PF60, 66L, 1500W, 300°C Max |
| 91-2341-03 |
PF120, 127L, 2000W, 300°C Max |
| 91-2341-04 |
PF200, 230L, 2700W, 300°C Max |
| 91-2341-05 |
PF400, 460L, 6000W, 250°C Max |
| 91-2341-06 |
PF800, 910L, 9000W, 250°C Max |
