Description

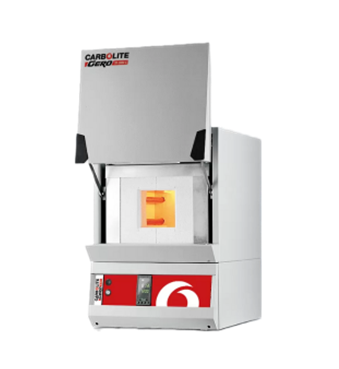

Verder Scientific® Carbolite-Gero® RHF Digital Chamber Furnace with Touch Screen, 3 L, 1600 degrees C, Verder Scientific, RHF-1603-2085N
Features:
- RHF range of silicon carbide heated high
temperature chamber furnaces comprises four chamber
sizes, each available with three maximum operating
temperatures of 1400 °C, 1500 °C and 1600 °C - Carbolite Gero 301 PID controller with single ramp
to setpoint & process timer - 3, 8, 15 or 35 litre chamber volumes
- Soft closing vertical lift door (3 & 8 litre models only)
- Silicon carbide heating elements provide long life and are
able to withstand stresses of intermittent operation - RHF 3 & 8 litre have cast alumina hearth while RHF 15 & 35 have silicon carbide hearth
- Low thermal mass insulation for energy efficiency &
rapid heating & cooling - Variety of options available, digital controllers, multisegment programmers, data loggers, over-temperature protection, and silicon carbide protection tiles (Specify when ordering)
Specifications:
| Maximum Temperature | 1600 degrees C |
| Heat-up Time | 42 minutes |
| Usable Chamber Dimensions, H x W x D | 120 x 120 x 205 mm |
| External Dimensions, Door Open, H x W x D | 655 x 435 x 610 (905) (Bench-top) |
| Volume | 3 L |
| Holding Power | 2300 W |
| Maximum Power | 4500 W |
| Thermocouple Type | R |
| Weight | 42 kg |
Specifications
| Capacity | 3 L |
|---|---|
| Other | Interior H x W x D, usable: 120 x 120 x 205 mm |
| Dimensions | Exterior H x W x D, Door closed (open)655 x 435 x 610 (905) mm |
| Manufacturer | Verder Scientific |
| Model No | RHF-1603-2085N |
