Description

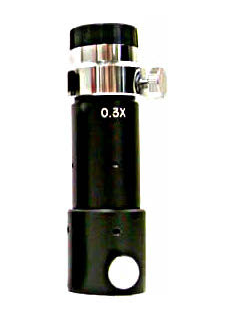

MA151/35/03 C-Mount Adapter with 0.3X lens (21mm reticle mount)PRODUCT INFORMATION
"C" Mount Adapter with 0.30X lens (Slips over existing photo tube) (21mm reticle mount). Recommended for use with Cameras with 1/3" chip.
NOTE: Reduction lenses (i.e. magnification factors less than 1.0x) are commonly used to compensate for the increased magnification factor inherent with cameras used on microscopes.
Any digital or video camera with a "C" type lens mount (1" diameter thread) can be mounted on any Meiji Techno trinocular microscope (25.2mm tube) by using these "C"-mount attachments. They are available with projection lenses of different powers allowing some control over the magnification and the field of view. "CS" mount cameras will require part number V-5MM to be threaded on prior to installing the adapter.
