Description

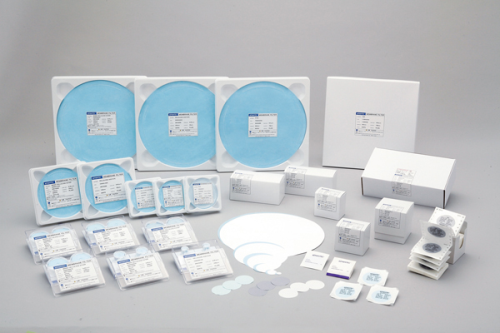

Advantec MFS™ Cellulose Acetate Membrane Filter 0.45 µm Pore Size, White, Plain, Nonsterile, 142 mm Diameter, 25/Pk, C045A142CFeatures:
¹ Bubble point is the minimum pressure required to force air through a membrane which has been prewet with water ² Flow Rate indicates initial flow rate at 10 psi using a KGS 47 filter holder Water: using water prefiltered to 0.1 µm pore size Air: using prefiltered nitrogen at 10 psi³ Porosity refers to the percent open areaOther Cellulose Acetate Membrane Filters Available:
- Composition—mixture of cellulose triacetate and diacetate
- Low statice charge and high strength
- Autoclavable—may be repeatedly sterilized without loss of integrity or adversely affecting bubble point
- Rapid wetting time—< 3 seconds to wet a 47 mm diameter disc with aqueous 1% methylene blue
- Lowest aqueous extractables (0.1 wt %) of all Advantec™ membranes
- Relative to MCE (Mixed Cellulose Esters, Nitrocellulose):
- Should be prewet prior to loading into a holder and autoclaving
- Enhanced recovery of fastidious gram positive organisms
- Filtration of enzyme solutions
- Diagnostic cytology
- Receptor binding studies
| Classification | Cellulose Acetate Code C |
| Pore Size | 0.45 µm |
| Diameter | 142 mm |
| Color | White |
| Surface | Plain |
| Sterile | No |
| Bubble Point ¹ | >/= 0.17 MPa ( >/= 25.9 psi) |
| Flow Rate, Water ² | 35 mL/min/cm² |
| Flow Rate, Air ² | 4 L/min/cm² |
| Porosity ³ | 68 % |
| Thickness, Average | 125 µm |
| Refractive Index | 1.47 |
| Maximum Operating Temperature | 180 °C |
| Ash Content | 1.5-3.5 µg/cm² |
| Cat. No. | Pore Size, µm | Diameter, mm | Surface | Color | Sterile | Pad |
| 90-7471-16 | 0.45 | 47 | Plain | White | No | No |
| 90-7466-27 | 0.45 | 90 | Plain | White | No | No |
| 90-7464-06 | 0.45 | 142 | Plain | White | No | No |
| 90-7471-32 | 0.80 | 47 | Plain | White | No | No |
