Description

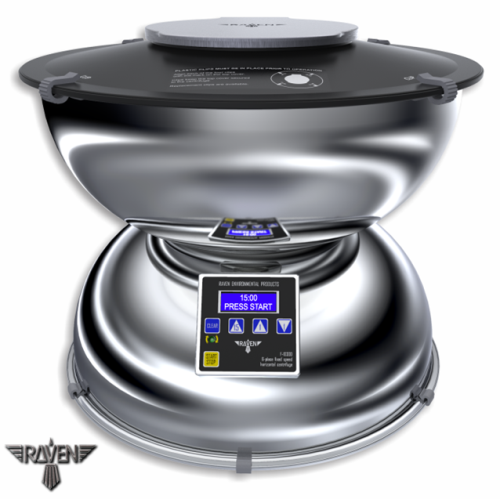

The Raven Centrifuge is specifically designed for process control applications to determine solids concentration in a multitude of fluids. Stainless steel with aluminum cover/lid. A new digital controller provides a reliable spin test for solids concentration. An on/off toggle switch overrides the motor for shut-off anytime during operation. Electronic timer and digital display with a 15-minute speed key and one-minute increment and decrement keys. A bright green LED alerts the operator when the unit is powered on. The LCD display indicates when the rotor is spinning. An audible sounds when the cycle is complete. Features
- Rugged and durable for industrial users, yet still a precision laboratory instrument.
- Powered by a 1/8 hp motor, the rotor spins 6 test tubes 3,000 fixed rpm at a full right angle to the axis of rotation.
- Rubber feet and a heavy base provide smooth and quiet operation.
- Relative Centrifugal Force (RFC) 1792g
- Fixed RPM 3000
- Totally enclosed fan cooled motor, 110V, 1.8amp, 1/8hp
- 12” high x 16” diameter. 15 lbs.
- Six (6) 19mm polycarbonate conical bottom test tubes.
