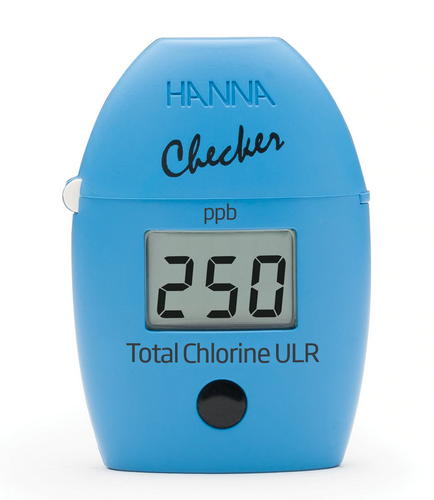

Checker HC Handheld Total Chlorine Colorimeter, Ultra Low Range, 0 to 500 ppb, Hanna Instruments, HI761

The new HI 761 Checker®HC ultra-low range Total Chlorine handheld colorimeter is a simple, accurate, and cost effective way to measure ultra-low ranges of Total Chlorine.  It was designed as a more accurate alternative to chemical test kits and it provides quick, accurate results in four easy steps:

1. Step One - Add a sample to the included cuvette(s)
2. Step Two - Insert sample into the Checker®HC and zero it out
3. Step Three - Remove sample and add reagent
4. Step Four - Reinsert sample and click the button to measure your results or . . . Press and hold the button for 3 seconds for a time reaction reading

The Checker®HC ultra-low range Chlorine colorimeter uses an adaption of the USEPA method 330.5.  The reaction between chlorine and the DPD reagent causes a pink tint in the sample.

Benefits:



• Small palm-sized design
• Accurate from ±5ppb; ±5% of reading
• Dedicated to a single parameter
• Uses a single AAA battery
• Auto Power-Off after 10 minutes of inactivity
• Built-in timer for timed reaction readings
• Six-month warranty



Primary Applications:



• Water Quality
• Education
• Water Purification
• Environmental





Specifications:

Range	0 to 500 ppb
Resolution	1 ppb
Accuracy (@25°C/77°F)	±5ppb; ±5% of reading
Measurement Method	Colormetric
Light Souce	Photodiode @525nm
Light detector	Silicon photocell
Method	Adaptation of the USEPA method 330.5.  The reaction between chlorine and the DPD reagent causes a pink tint in the sample.
Power Supply	Battery - 1 x 1.5V AAA
Power Auto-Off	After 10 min. of inactivity
Environment	0 to 50°C (32 to 122°F); RH max 95% non-condensing
Dimensions	81.5 x 61 x 37.5 mm (3.2 x 2.4 x1.5)
Weight	64 g (2.25 oz.)

90-2619-01	Free Chlorine Checker®HC HI701
90-2619-02	Total Chlorine Checker®HC HI 711
90-2619-03	Free Phosphate Checker®HC HI 713
90-2619-04	Free Iodine Checker®HC HI 718
90-2619-05	Free Iron Checker®HC HI 721
90-2619-06	Low Range Fluoride Checker®HC HI 729
90-2619-07	Calcium Checker®HC HI 758
90-2619-08	High Range Silica Checker®HC HI 770
90-2619-09	Color of Water Checker®HC HI 727
90-2619-12	Ultra Low Range Phosphorus Checker®HC HI 736
90-2619-13	Alkalinity Checker®HC HI 755
90-2619-14	Ultra Low Range Nitrite Checker®HC HI 764
90-2619-15	High Range Phosphorus Checker®HC HI 706
90-2619-16	High Range Nickel Checker®HC HI 726
90-2619-17	High Range Phosphate Checker®HC HI 726
90-2619-18	High Range Chromium VI Checker®HC HI 717
90-2619-39	High Range Ammonia Checker®HC HI 733
90-2619-60	Low Range Ammonia Checker®HC HI 700
90-2619-90	Ultra High Range Total Chlorine Checker®HC HI 771
90-2619-93	Ultra Low Range Total Chlorine Checker®HC HI 761

Supplied with:

• Colorimeter
• Two Sample Cuvettes with Caps
• Reagent starter Kit (6 packets for total chlorine ultra-low range)

• 1—1.5V AAA battery
• Instruction Manual
