Description

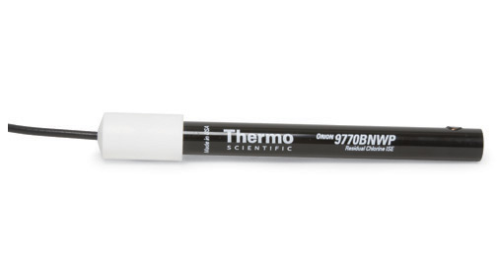

Thermo Scientific™ Orion™ Chlorine Electrode, BNC Connector, Waterproof, with 1 m Cable, 9770BNWP
Features:
- Measure total residual chlorine quickly and accurately with the Thermo Scientific™ Orion™ Chlorine Electrodes
- All forms of total residual chlorine can be measured
- Method permits rapid analysis to be done at the sampling site, eliminating erroneous low readings due to Cl2 loss.
- Electrode has a slope of about +29 mV per decade increase in concentration
- Calibration standards catalog number: 100 ppm as Cl2 91-2673-03 (Orion™ 977007)
- Method requires addition of two reagents to the sample before measurement—required special ISE reagents: 91-2673-07 (Orion™ 977010) iodide reagent; 91-2673-05 (Orion™ 977011) acid reagent
Specifications:
| Connector Types | Waterproof BNC |
| Description | Waterproof BNC connector |
| For Use With (Equipment) | ISE Meters |
| Type | Combination Ion Selective Electrode |
| Electrode Resistance | Less than 1 megohms |
| Reproducibility | ± 2% |
| Cable Length | 1 m |
Specifications
| Range | Concentration: 3 x 10-7 M to 10-4 M (0.01 ppm to 20 ppm), higher concentrations can be measured with dilution |
|---|---|
| Range | pH: 0 to 14, samples are buffered to pH 4 |
| Operating Environment | 0 degrees C to 50 degrees C continuous use, 50 degrees C to 100 degrees C intermittent use |
| Dimensions | Body: 110 m length x 12 mm diameter, Cap: 16 mm diameter |
| Manufacturer | Thermo Scientific Orion |
| Model No | 9770BNWP |
| Warranty | 12 months from date of purchase by Buyer or 18 months from date of shipment from Seller, whichever is earlier |
