Description

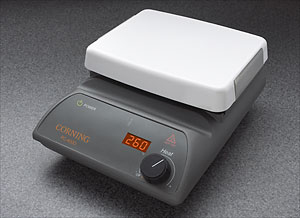

Corning® 5 x 7 Inch Top PC-400D Hot Plate with Digital Displays, 6795-400DHot plate Model PC-400D has a 5 x 7 (12.7 x 17.8 cm) Pyroceram® Glass-Ceramic top and digital temperature display. It is designed to operate on 120V/60Hz with standard US three-prong plug. Features:
- Microprocessor maintains consistent and repeatable temperature settings from 5°C (if ambient temperature is 0°C or lower) up to 550°C.
- Digital LED temperature display is adjustable in 5°C increments and blinks until set temperature is reached.
- Optional external temperature controller (Corning® 6795PR) controls temperature inside the vessel and eliminates the need to closely monitor liquid temperature.
- Hot plate is UL and cUL approved
- Bright LED HOT TOP icon lights when top plate is over 60°C
- Two piece casting design deflects spills away from electronics
- Built-in mount for optional 18 (45.7 cm) support rod (92-1422-27)
- Comes with a 2 year warranty
| Number of heating positions | 1 |
| Top size | 5 x 7 (12.7 x 17.8 cm) |
| Top material | Pyroceram glass-ceramic |
| Temperature range | 5 to 550°C (41 to 1022°F) |
| Weight | 3.2 kg |
| Power | 120V 60Hz |
| Amperage | 5.3 |
| Watts | 628 |
| Dimensions (L x W x H) | 11 x 4-1/4 x 7-3/4 (27.9 x 10.8 x 19.7 cm) |
Other Sizes and Configurations:
| 90-9365-11 | PC-400D | 5 x 7 | Digital Hot Plate |
| 90-9365-12 | PC-600D | 10 x 10 | Digital Hot Plate |
| 92-1422-11 | PC-410D | 5 x 7 | Digital Stirrer |
| 92-1422-13 | PC-610D | 10 x 10 | Digital Stirrer |
| 92-1423-01 | PC-420D | 5 x 7 | Digital Hot Plate / Stirrer |
| 92-1423-13 | PC-620D | 10 x 10 | Digital Hot Plate / Stirrer |
