CRI / CSR Test System per ASTM D5341,230v/3ph/50-60Hz
Roll over image to zoom in Click on image to zoom
CRI / CSR Test System per ASTM D5341,230v/3ph/50-60Hz

CRI / CSR Test System per ASTM D5341,230v/3ph/50-60Hz

Item: Z94-8543-02-EA
Request a Quote

Description

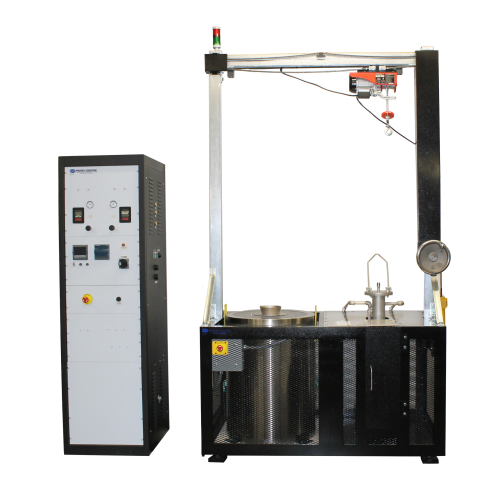

Preiser's Z94-8543-02, shown here, in conjunction with the Z94-8543-53 Tumbler provides a high-quality, precision system for determining Coke Reactivity Index (CRI) and Coke Strength After Reaction (CSR) to ASTM Standard D5341.  The ASTM standard was developed to simulate the major weakening processes - chemical reaction with carbon dioxide gas, and physical abrasion - encountered by coke lumps as they descend through a blast furnace.  In accordance with the ASTM method, the system produces the coke/carbon dioxide reaction in a regulated atmosphere vessel within a high-temperature furnace. The reacted and cooled coke is then transferred to the strength-after-reaction tumbler where it is tumbled for a specified number of revolutions.

Features

Furnace

  • Normal Operation Temperature: 1100oC (2012 oF)
  • Furnace built for 1300 oC (2372 oF)
  • Heating Elements: 6 silicon carbide elements
  • Power: 15,000W; 230Vac; 3 Phase; 50-60Hz
  • Other voltages available, please contact us
  • Dimensions: 6ID x 24OD x 32Length
  • Heated Length: 18
  • Mounting Stand: Floor-standing, baseplate with levelers,48 furnace mounting bar

Control System

  • Cabinet Dimensions: 19” x 24” x 70”
  • Temperature Control: Programmable controller with outputs for solenoid control
  • Over-Temperature Control: Independent series controller, power shut-down relay, manual reset
  • Power Supply: Phase angle SCR with current limiting, % power indicator, circuit breaker, power-on indicator
  • Gas Control: N2 and CO2: Mass flow controllers with display, A2LA certified.  2 position -3 way solenoid valve for gas select

Reaction Vessel

  • Material: Inconel 600
  • Dimensions: 3” Schedule 40 x 30” long
  • Internal Components: Gas diffuser, preheating section, Al2O3 preheating balls, thermocouple protective assembly
  • External Components: Removable lid assembly with gas outlet tube, thermocouple guide tube; gas inlet tube

After Reaction Tumbler

  • Description: Fully guarded motor driven tumbler with direct speed reducer, timer, and revolution counter.
  • 230v 50/60Hz with a 10 amp breaker
  • Dimensions: 40.5” x 40.5” x 54.5”
