Description

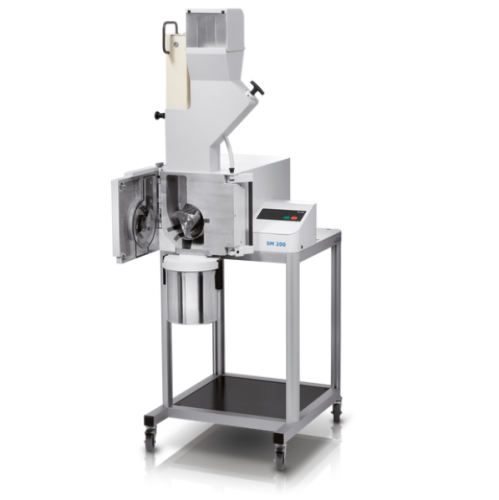

Retsch® Cutting Mill SM 200, Heavy-Metal Free, 3 x 220-240V 60Hz, 20.728.0007
Features:
- Feed size <60 x 80 mm
- Defined final fineness due to bottom sieves with aperture sizes from 0.25 - 20 mm
- Equipped with double acting cutting bars which substantially increase number and effectiveness of the cutting events —parallel section rotor, for example, generates 18 cutting events per rotation
- Quick and easy cleaning due to smooth surfaces, fold back hopper, push-fit rotor and sieves
- Operation with gravity outlet or optionally available cyclone unit possible
- Wide range of accessories including various hoppers, collection systems, rotors and sieves
- Highest safety standards due to engine brake, central locking device, electronic safety check and safety base frame
- Suitable for grinding of soft, medium-hard, tough, elastic, fibrous, and heterogeneous mixes of products
- SM 200 is universal standard model of Retsch® Cutting Mills which covers vast range of applications
- Equipped with a strong 2.2 kW motor and operates at a rotor speed of 1500 rpm
- In combination with optional cyclone-suction-combination, the SM 200 is also suitable for, grinding light or heat sensitive sample materials
- Heavy-metal-free version is available to avoid cross-contamination
Specifications:
| Field of Application | Agriculture, biology, chemistry / plastics, engineering / electronics, environment / recycling, food, medicine / pharmaceuticals |
| Feed Material | Soft, medium-hard, tough, elastic, fibrous |
| Size Reduction Principle | Shearing, cutting |
| Material Feed Size* | < 60 x 80 mm |
| Final Fineness* | 0.25 - 20 mm |
| Speed at 50 Hz (60 Hz) | 1,500 min-1 |
| Rotor Peripheral Speed | 9.4 - 11.4 m/s |
| Rotor Diameter | 129.5 mm |
| Types of Rotors | Parallel section rotor / 6-disc rotor |
| Types of Hoppers | Standard, long stock |
| Material of Grinding Tools | Stainless steel, steel for heavy-metal free grinding, tungsten carbide |
| Sieve Sizes | Trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| Collector Systems / Capacities | Collecting receptacle 5 L/ optional: 30 L collecting unit 0.25 / 0.5 L cyclone-suction combination (0.25 L - 30 L) |
| Drive | 3-phase motor |
| Drive Power | 2.2 kW |
| Electrical Supply Data | Different voltages |
| Power Connection | 3-phase |
| Engine Brake | Yes |
*depending on feed material and instrument configuration/settings
Specifications
| Range | Speed: 1,500 min-1 |
|---|---|
| Range | Rotor Peripheral Speed: 9.4 - 11.4 m/s |
| Capacity | 5 L standard size |
| Power | 3 x 220-240V 60Hz |
| Application | Size reduction by cutting |
| Compliant/Standard | CE, IP54 |
| Dimensions | W x H x D: 576 (1090 opened) x 1675 x 760 mm (with base frame and standard hopper) |
| Weight | 90 kg without hopper approximate |
| Manufacturer | Verder Scientific Retsch |
| Model No | 207280007 |
