Description
Starn Cells® Cylinder Cell, Spectrosil Far UV Quartz Windows, Useable Range: 170 to 2700 nm, 34-Q-100
Features:

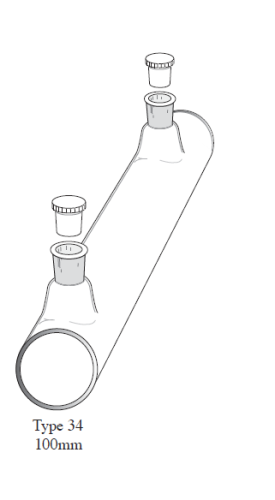

- Type 34 cylinder cell
- Please note when filling cylindrical cells, to avoid damage to windows, do not fill cell to top — leave an air gap to prevent breakage of windows by hydraulic pressure of stopper being inserted
- PTFE stoppers are supplied with each cell as pictured
Specifications:
| Path Length | 100 mm |
| Exterior Dimensions | 22 mm diameter x 102.5 mm length |
| Interior Dimensions | 19 mm diameter x 100 mm length |
| Nominal Volume | 28.200 mL |
| Number of Stoppers | 2 |
| Polished Windows | 2 |
Specifications
| Range | Useable, 170 to 2700 nm |
|---|---|
| Capacity | 28.2 mL |
| Material | Quartz |
| Manufacturer | Starna Cells |
| Model No | 34-Q-100 |
