Description

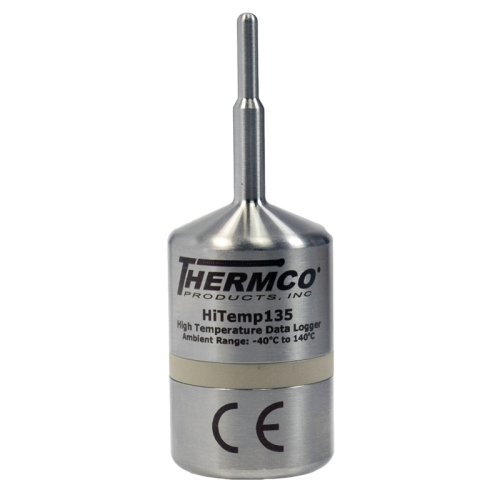

Thermco® HiTemp 135FC Temperature Data Logger is a certified and traceable to N.I.S.T data logger, designed to use in the harsh environment of autoclaves and steam sterilizers to measure and record temperatures. It is a rugged submersible stainless steel device that can withstand temperatures up to 140°C (284°F) with an accuracy of ±0.1°C (±0.18°F). The device stores up to 32,700 date & time stamped readings, and has non-volatiel solid state memory that will retain data even if the battery becoms discharged.
Using the Thermco Software, starting, stopping and downloading the HiTemp 135 is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, °K or °R. The data can also be automatically exported to Microsoft Excel® for further calculations.
Features:- ±0.1°C (0.18°F) Accuracy
- Operates Up To 140°C (284°F)
- Submersible (IP68)
- NIST Traceable
- User Replaceable Battery
- Rugged
- Programmable start time
- Programmable stop time
- Engraved Label
- Probe Lengths Up To 7”
- Battery Life Indicator
- Certified @120°C or 121°C
| Temperature Sensor | 100 Omh Platinum RTD (Resistance Temperature Detector) |
| Probe Measurement Range | -200°C to +260°C (-385°F to +500°F) |
| Temperature Resolution | 0.01°C (0.02°F) |
| Calibrated Accuracy | ±0.1°C/±0.18°F(-20°C to +140°C/-4°F to +284°F) |
| Start Modes | "Software programmable immediate start; Delay start up to eighteen months in advance" |
| Stop Modes | "Manual through software Timed (specific date and time)" |
| Real Time Recording | May be used with PC to monitor and record data in real time |
| Password Protection | An optional password may be programmed into the device to restrictaccess to configuration options. Data may be read out without the password. |
| Memory | 32,700 readings |
| Wrap Around | Yes |
| Reading Rate | One second up to once every 24 hours |
| Battery Type | 3.6V high-temperature lithium battery included; user replaceable |
| Battery Life | 1 year typical (1 minute reading rate at 25°C/77°F) |
| Calibration | Digital calibration through software |
| Calibration Date | Automatically recorded within device |
| Data Format | Date and time stamped °C, °F, °K, °R |
| Time Accuracy | ±1 minute/month at 20°C to 30°C(68°F to 86°F) (Stand alone Mode) |
| Computer Interface | IFC 400 USB docking station required 125,000 baud |
| Software | Windows® XP® SP3/Vista®/Windows® 7 |
| Operating Environment | -20°C to +140°C (-4°F to +284°F); 0% to 100%Relative Humidity |
| Dimensions (Body) | 67mm x 25mm diameter (2.7" x 0.97" diameter) |
| Dimensions (Probe**) | 50mm x 3.8mm to 3.2mm transitional diameter (2" x 0.188" to 0.125" transitional diameter) |
| Weight | 120g (4.2oz) |
| Material | 316 Stainless steel |
