Description

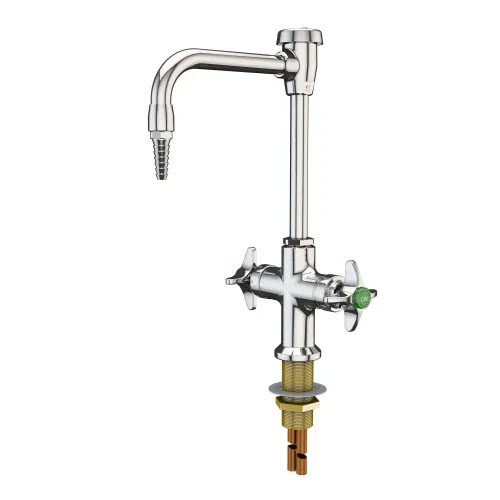

Application: Deck mounted mixing faucet with vacuum breaker for hot and cold water.
Body: Forged brass.
Valve Units: WaterSaver self-contained compression valve units with replaceable stainless steel seats.
Handles: Forged brass four-arm handles with color-coded index discs.
Gooseneck: 8" swing gooseneck.
Vacuum Breaker: Integral vacuum breaker to prevent backflow. Vacuum breaker has replaceable seat and ultra-light float cup to resist spilling at low flow.
Inlet: 1-3/16″ male shank with (2) 3/8″ OD flexible copper tubes. Furnished complete with locknut and washer.
Outlet: 3/8″ NPS female outlet with removable anti-splash serration hose end.
Quality Assurance: Faucet is fully assembled and factory tested prior to shipment.
Specifications
| Manufacturer | WaterSaver |
|---|---|
| Model No | L412-8VB |
