Description

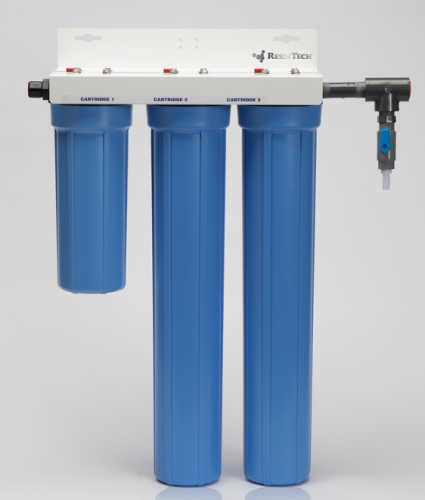

ResinTech® Inc. Deionization (DI) System, Hydra® 'Slimline', High Capacity, HYS-122-S-HC
Features:
- Typical effluent:10 MΩ-cm
- Wall-mounted and low profile
- Water quality light indicating cartridge replacement
- Economically produces DI water
- Pre-assembled cartridge system with resistivity light that provides deionized water using staged filtration process
- Designed for city water and tap water supply
- Outlet isolation valve
- Three cartridge system:
- Stage (1) removes particles greater than 5 micron, chlorine, and organics
- Stages (2 & 3) are deionizers designed to remove dissolved minerals
- Designed for less corrosive applications and provides water quality better than 50 KiloOhms — ideal for scale reduction and non-stainless steel piping systems
- System capacity: 1800 grains as CaCO3
- Volume capacities at various concentrations:
- 2650 gal at 10 ppm
- 265 gal at 100 ppm
- 90 gal at 300 ppm
- 50 gal at 500 ppm
- Replacement cartridge kit: HYK-122-S-HC
- Made in U.S.A.
Included:
- (1) carbon 2 1/2 in. x 10 in. cartridge
- (2) 2 1/2 in. x 20 in. high capacity mixed bed cartridges
- 20 kΩcm DI Light
- 3/4 in. fitting and tubing kit
- All housings preassembled on wall mounting bracket
- Outlet water is completely deionized with water quality better than 50 K-ohm resistance
- Spanner wrench
Applications:
- General deionization
- Battery water filling
- Humidification
- Hydrogen generator
- Glassware rinse
- Glassware washer
- Sterilizers
Specifications
| Range | Pressure: 20 to 90 psig |
|---|---|
| Range | Temperature: 100 degree F maximum |
| Range | Maximum flow rate: 0.5 gpm |
| Capacity | 1800 grains as CaCO3 |
| Material | Polypropylene (PP) housing, painted steel bracket |
| Power | 120 V |
| Connectivity | Inlet:- 3/8 in. outside diameter tubing |
| Connectivity | Outlet: 1/2 in. hose barb |
| Other | Bowl diameter: 2-1/2 in. |
| Dimensions | Height x width x depth: 24.5 x 19.4 x 5.3 in. |
| Weight | 24 lbs |
| Manufacturer | ResinTech Inc |
| Model No | HYS-122-S-HC |
