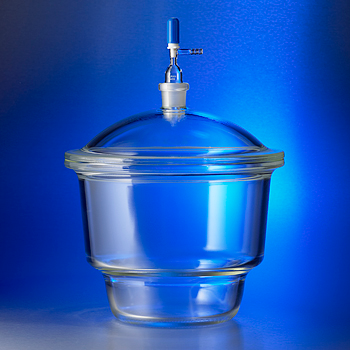

Desiccator, Pyrex 2.4L Small Top with 24/29 Stopcock (Use with 140 mm Plate), Corning, 3121-150
Roll over image to zoom in Click on image to zoom
Desiccator, Pyrex 2.4L Small Top with 24/29 Stopcock (Use with 140 mm Plate), Corning, 3121-150

Desiccator, Pyrex 2.4L Small Top with 24/29 Stopcock (Use with 140 mm Plate), Corning, 3121-150

Item: 90-6367-01-CS
UOM: CS (1)
Price:
$483.39

Description

Corning® Pyrex® 2.4L Desiccator with Small Top and 24/29 Taper Stopcock, use with 140 mm Plate, 3121-150Features:
  • Rugged 24/29 Standard Taper external sleeves with tooled hose connections that serve as stopcock
  • Manipulation of stopcock is not affected by vacuum
  • Loosen stopcock to disengage the PTFE plug from contact with glass to introduce vacuum; one-half turn from this position closes desiccator
  • Designed to eliminate the need for grease
CAUTION:  Do not heat or subject to pressure; Rated 1-atmosphere vacuumSpecifications:
Capacity 2.4 L (approx)
Dessicator Style Reusable Vacuum
Height 239 mm (approx)
Recommended Plate Diameter 140 mm (approx)
I.D. of Ground Flange 172 mm (approx)
Chamber Depth 81 mm (approx)
Tubulation O.D. 12 mm (approx)
Other sizes:
90-6367-01 3121-150 2.4 L Vacuum Desiccator, use 140 mm Plate
90-6367-02 3121-200 5.8 L Vacuum Desiccator, use 190 mm Plate
90-6367-03 3121-250 10.5 L Vacuum Desiccator, use 230 mm Plate

Specifications

Manufacturer Corning
