Description

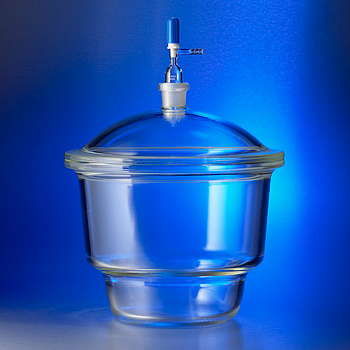

Corning® Pyrex® 5.8 L Desiccator with Small Top and 24/29 Taper Stopcock, use with 190 mm Plate, 3121-200Features:
Other sizes:
- Rugged 24/29 Standard Taper external sleeves with tooled hose connections that serve as stopcock
- Manipulation of stopcock is not affected by vacuum
- Loosen stopcock to disengage the PTFE plug from contact with glass to introduce vacuum; one-half turn from this position closes desiccator
- Designed to eliminate the need for grease
| Capacity | 5.8 L (approx) |
| Dessicator Style | Reusable Vacuum |
| Height | 296 mm (approx) |
| Recommended Plate Diameter | 190 mm (approx) |
| I.D. of Ground Flange | 223.5 mm (approx) |
| Chamber Depth | 115 mm (approx) |
| Tubulation O.D. | 12 mm (approx) |
| 90-6367-01 | 3121-150 | 2.4 L Vacuum Desiccator, use 140 mm Plate |
| 90-6367-02 | 3121-200 | 5.8 L Vacuum Desiccator, use 190 mm Plate |
| 90-6367-03 | 3121-250 | 10.5 L Vacuum Desiccator, use 230 mm Plate |
Specifications
| Manufacturer | Corning |
|---|
