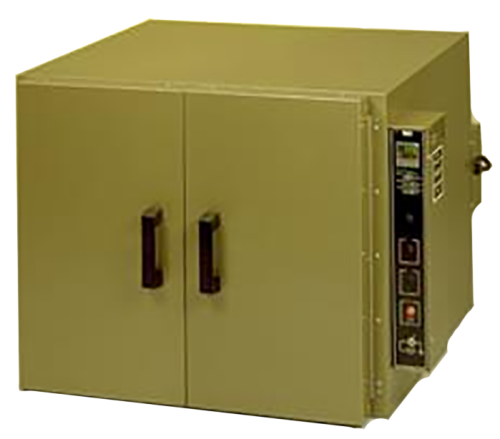

Digital Bench Oven, 7 Cu.Ft. Ambient + 14 to 150 Degrees C with Ramp & Soak Programming, 120 V, Quincy Lab, Inc, 21-250ER

Quincy Lab Digital Bench Oven, 7 Cu.Ft., Ambient + 14 to 150 °C, with Ramp and Soak ProgrammingDeveloped for the industrial lab, this rugged general-purpose oven has a re-designed chamber and air flow distribution system, improved cabinet insulation and a PID microprocessor temperature controller.  It is perfect for preheating, thermal testing, self-batch processing, part drying, curing, baking, evaporating, or dehydrating various media, soils or aggregate, and many other applications. A virtual non-contact exterior to interior cabinet design and high-density industrial thermal fiber insulation greatly reduces thermal conductive transfer.  That means greater energy efficiency and lower exterior wall temperatures. Refinements in the air plenums and mixing chamber deliver an evenly heated horizontal circular flow of air for rapid heat to part transfer.  A reliable quick-sensing hydraulic thermostat balances good temperature stability with recovery performance.  Heavy-duty chrome plated wire shelves can support 80 lbs. and can be spaced on 1.5" centers.  Cabinet exteriors are finished in the exclusive Q-Lab "high-tech" bronze polyester.  Large high-impact thermal plastic door handles always remain cool to the touch.Features:

• Large bench or portable capacity, stackable to conserve space
• All encompassing circular air flow
• Programmable PID control
• 80 lb capacity shelves
• Rapid run-up and recovery
• Proven reliability
• Full 18-month factory warranty

---

   WARNING:  This product can expose you to chemicals including Diethylhexyl Phthalate (DEPH), which is known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

---

Specifications and Performance Characteristics***:

Interior Dimensions, WxHxD	inches	25.5 x 19.75 x 24
cm	64.7 x 50 x 61
Exterior Dimensions, WxHxD	inches	33 x 24 x 35.5
cm	83 x 61 x 90
Capacity	cu.ft.	7
L	198
Temperature Range	°F	300
°C	150
Shelves (1-1/2"" Centers)	Maximum per Unit	11
Max. lbs/Shelf	80
Electrical	Volts/Amp	115/9.2
Watts	1050
Plug/NEMA	5-15P*
Weight	Shipping	185
Stand Alone	165
Control Stability	@ 100	± 2.0 / 0.2 °C
@ 200 °C	N/A
Uniformity	@ 100 °C	± 2.5 / 0.2 °C
@ 200 °C	N/A
Time to Reach Temperature	Ambient to 100 °C	15 min. / 16 min.
Ambient to Max	36 min. / 38 min.
Recovery @ 150 °C	Door open 15 sec.	4 min. / 5 min.
Door open 30 sec.	5 min. / 6 min.
Repeatabilty @ 150 °C (Set Point Drift) **	± 2.0 / 0.5 °C
Air changes max/hour @ 150 °C with no load	8 to 12
Max chamber air velocity	7 ft/sec.
Evaporation Rate @ 110 °C ± 5 °C (230 °F ± 5 °F) per ASTM C88	30-35 g/h
