Description

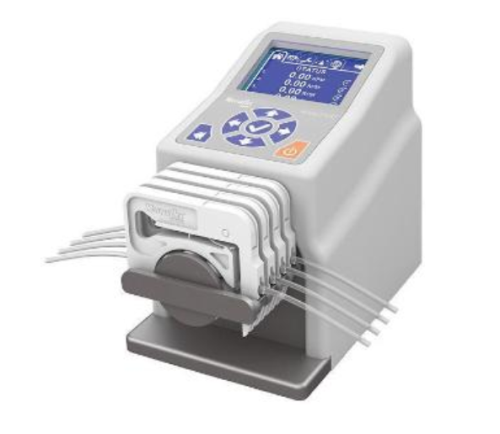

Digital Pump, Masterflex® Ismatec® Reglo ICC, 4-Channel, 8-Roller; 100 to 240 VAC, 50/60 Hz, 78001-80
Features:
- Flow rate 0.001 to 43 ml/min per channel - flow rate depends on drive rpm, rollers, and tubing size
- USB interface for quick connection to a PC
- Flexibility of bidirectional flow in each channel
- Designed with 4-channels and 8-rollers which can be individually controlled from keypad or PC
Specifications:
| Model | 78001-80 |
| Description | Reglo ICC Digital Pump, 4-Channel, 8-Roller; 100 to 240 VAC, 50/60 Hz |
| Pump Head | Cartridge |
| Housing material | ABS plastic |
| No. of Channels | 4 |
| No. of rollers | 8 |
| Control Type | Digital |
| Drive IP rating | IP 30 |
| Anti-drip | Yes |
| Cloud connected | No |
| Digital dispensing | Yes |
| Drive | Reglo ICC |
| Duty Cycle | Continuous |
| Open-head sensor | No |
| Reversible motor | Yes |
| Series | Reglo ICC |
| Tubing sizes accepted | Three-stop 0.13 mm ID to 3.17 mm ID |
| Washdown capable | No |
| Max. Pressure | 1 bar (14.5 psi) |
| Min. flow rate per channel | 0.0002 ml/min |
Specifications
| Range | Flow Rate: 0.0008 mL/min to 140 mL/min; maximum per channel: 35 mL/min |
|---|---|
| Range | Speed: 0.1 rpm to 100 rpm |
| Power | 100 - 240 VAC; 50/60 Hz |
| Accuracy | +/- 1% |
| Connectivity | USB 2.0. Mini-B. RS-232 |
| Dimensions | H x L x W: 170 mm x 218 mm x 125 mm (6.7 in. x 8.6 in. x 4.9 in. |
| Manufacturer | Masterflex |
| Model No | 78001-80 |
| Warranty | 2 years |
