Description

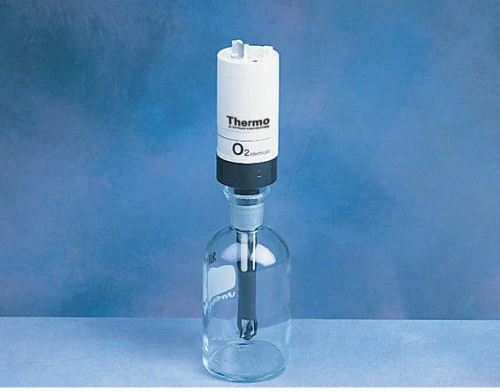

Thermo Scientific™ Orion™ Dissolved Oxygen/BOD Probe, 970899WP
Features:
- Make any pH meter a dissolved oxygen meter with th Dissolved Oxygen/BOD Probe
- Polarographic O2 sensor plus solid-state circuitry in probe top; converts current to voltage for direct DO readout
- Plug probe into benchtop or portable pH meter, read DO over 0 to 14 ppm range
- Accuracy, ±0.05 ppm/2% of reading, whichever is greater, at 15 ° to 35 °C (59 ° to 95 °F) (sample temperature within 10 °C of calibration temperature)
- Dual thermocompensator corrects for membrane permeability and O2 solubility
- Ideal for BOD testing: overflow funnel supplied fits 300mL BOD bottle; built-in magnetic stir bar
- Responds to 96% of change in <30 sec.; O2 consumption 0.1 μg/hr.
- Screw-on membrane/electrolyte module; no membrane replacement — simply replace module after 3 months of use
Included:
- Two silver oxide 10L14 batteries
- 91-2660-05 (Orion 970801) two membrane/electrolyte modules
- Overflow funnel
- Built-in stir bar
- 29.5 in. long (75 cm) cable
- U.S. standard connector
Specifications:
| Description | Dissolved Oxygen Electrode with BNC Connector |
| Sensor Types | Polarographic Dissolved Oxygen Sensor |
| For Use With (Equipment) | Dissolved Oxygen/BOD Probe |
| Type | DO Electrode, BNC Connector |
| Dissolved Oxygen (Concentration Range) | 0 ppm to 14 ppm |
| Temperature (Metric) Operating | 15 °C to 35 °C |
| Cable Length | 75 cm |
Specifications
| Range | DO: 0 ppm to 14 ppm |
|---|---|
| Power | Two silver oxide 10L14 batteries |
| Operating Environment | 15 degrees C to 35 degrees C |
| Dimensions | 1.87 in. O.D. (48 mm) at top, 0.5 in. O.D. (13 mm) at sensor section and 9.62 in. L (240 mm) |
| Weight | 8 oz. (225 g) |
| Manufacturer | Thermo Scientific Orion |
| Model No | 970899WP |
| Warranty | 12 months from date of purchase by Buyer or 18 months from date of shipment from Seller, whichever is earlier |
