Description

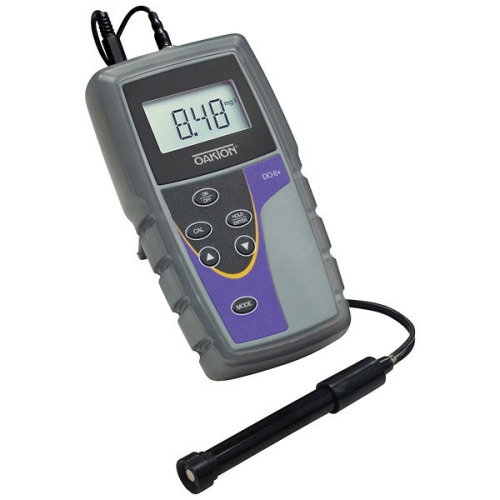

Cole-Parmer® Oakton® DO6+ Dissolved Oxygen Meter Kit with Probe, WD-35643-14Features:
- Economical instrument combined with high accuracy
- Low-maintenance, galvanic probe requires no warm-up time
- Provided with a protective rubber boot that also functions as benchtop stand
- LCD display allows switching between ppm or mg/L DO units, freezing reading, toggling between DO and temperature
- Electrode slope, zero offset, and millivolt values for electrode diagnostics
- Ideal for wastewater, surface water, groundwater, and drinking water applications
- Automatic barometric and salinity compensation after manual parameter inputs
- 3 year warranty
Includes:
- DO meter
- Galvanic dissolved oxygen probe (WD-35642-50)
- Membrane caps / electrolyte solution kit (WD-35642-55)
- Protective rubber boot
- Solution bottles
- Rinse bottle
- Hard plastic carrying case
- Batteries
Specifications:
| Dissolved Oxygen | Units | % Saturation; mg/L (ppm) |
| Range | 0.0 to 200.0%;0.00 to 20.00 mg/L (ppm) | |
| Resolution | 0.1%; 0.01 mg/L (ppm) | |
| Relative Accuracy | ± 1.5 % of Full Scale | |
| Temperature | Range | - 5.0 to 105.0 °C (meter)0.0 to 50.0 °C (probe) |
| Resolution | 0.1 °C | |
| Relative Accuracy | ± 0.5 °C | |
| Compensation | Automatic or Manual; 0.0 to 50.0 °C | |
| Salinity Correction | Range | 0.0 to 50.0 ppt |
| Resolution | 0.1 ppt | |
| Method | Automatic correction after manual input | |
| Barometric Pressure Correction (mm Hg) | Range | 500 to 1499 mm Hg or 66.6 to 199.9 kPA |
| Resolution | 1 mm Hg or 0.1 kPA | |
| Method | Automatic correction after manual input | |
| Probe | DO/Temperature | Galvanic/Thermistor |
| Diameter | Body: 12 mm; Cap: 16 mm | |
| Response Time | 60 seconds to achieve 95% of the reading | |
| % Saturation | Calibration Points | 100 % in saturated air or air-saturated water; 0% in zero oxygen solution |
| Calibration Limits | Factory calibrated absolute value of 10.0% and below for 0% point & 50% to 200% for100% point | |
| Offset Adjustments | ± 10.0 of reading in saturation mode | |
| Calibration Window | Concentration | ± 40% from the factory default measurement value;minimum reading allowed: 2.00 mg/L (ppm) |
| Temperature | ± 5 °C from the factory default measurement | |
| HOLD Function | Yes | |
| Auto-Off Function | Selectable Auto-Off function (20 minutes after last press) | |
| Display | Custom Single 4 Digit LCD | |
| Inputs | BNC for DO & 2.5 mm phono for temperature | |
| Operating Range | 0.0 to 50.0 °C | |
| Power Requirements | 4 - 1.5 V AAA-sized batteries (included) | |
| Battery Life | > 700 hours (alkaline batteries) | |
| Dimensions | Meter: 15.7 x 8.5 x 4.2 cmProbe: 115 mm x 12 mm diameter / 3-ft. cableMembrane housing: 16 mm diameter |
| Catalog No. | Mfg P/N | Description |
|
90-6399-07 |
WD-35643-12 | DO 6+ Dissolved Oxygen Meter with DO Probe |
|
90-6399-05 |
WD-35643-14 | DO 6+ Dissolved Oxygen Meter Kit with DO Probe |
