Description
SPECIFICATIONS
- Accuracy (ISE) ±0.2 mV or ±0.05 of reading, whichever is greater
- Accuracy (mV) ±0.2 mV or ±0.05% of reading whichever is greater
- Accuracy (pH) ±0.002pH Data Points 1000

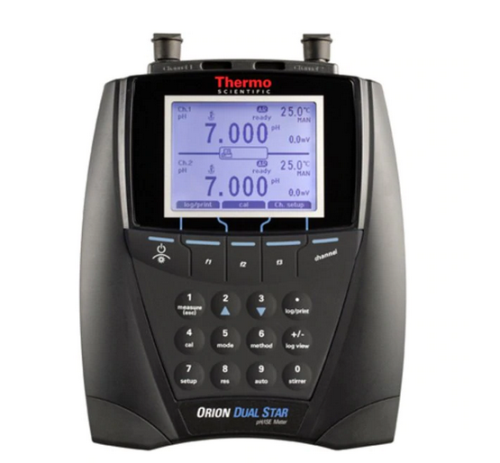

- Description Orion DUAL STAR pH/mV/ISE/Temperature Dual Channel Benchtop Meter Kit
- Display Type Graphic LCD with backlight
- Inputs 2 BNC (pH or ISE), 2 x 8-pin Mini-DIN (temperature), 2 reference pin-tip, stirrer input
- Outputs USB, RS232
- Power Supply Universal 90-260 VAC (included)
- Range (ISE) 0 to 19999 in ppm, M, %, ppb or unitless
- Range (mV) ±1999.9mV
- Range (pH) -2.000 to 19.999pH
- Resolution (ISE) Up to 3 significant digits
- Resolution (mV) 0.1mV
- Resolution (pH) 0.1, 0.01, 0.001pH
- Temperature (English) Operating 41° to 113°F
- Temperature (Metric) Operating 5 to 45°C
- Accuracy (Temperature) ±0.1°C
- Range (Temperature) -5 to +105°C
- Resolution (Temperature) 0.1°C
- Warranty 3 year meter replacement
- Certifications/Compliance IP-54
- Advanced ISE Functions Linear point to point, non-linear selectable auto-blank, incremental techniques including single known addition and subtraction, double known addition and subtraction
- Calibration Points (pH) 2 to 6
- Calibration Points (ISE) 1 to 6
- Calibration pH, ORP, relative mV, ISE
- Hertz 50/60Hz
- Includes DUAL STAR Meter with Electrode Stand; Universal Power Adapter; 8157BNUMD ROSS Ultra Epoxy Refillable pH/ATC Triode Electrode
- Relative Humidity 5 to 85 %, non-condensing
- Voltage 90 to 260VAC
