Description

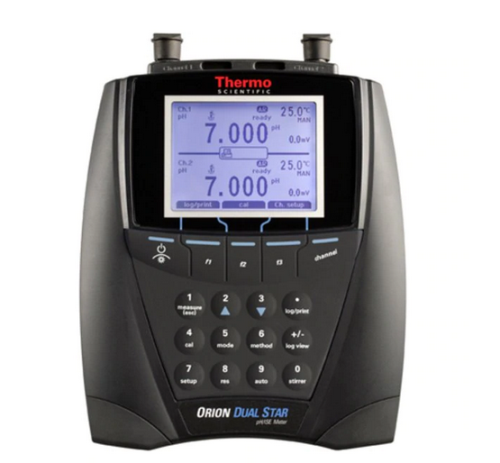

Thermo Scientific™ Dual STAR™ Meter with Electrode Stand; Universal Power Adapter; 927007MD Stainless Steel ATC Probe, 2115000
Features:
- View large, individual measurements on full screen display or quickly toggle to split screen display to view two measurements at same time
- Measure pH, ion concentration (ISE), mV, relative mV or ORP with temperature on two channels using meter’s two BNC, reference pin-tip and ATC temperature inputs
- Meter’s Smart Stability and Smart Averaging functions automatically compensate for measurement conditions, so meter displays more accurate results faster
- Easy-to-follow on-screen text prompts for calibration and setup menus available in multi-language user interface with English, Spanish, French, German or Italian options
- EZ Startup menu facilitates quick and easy first-time meter setup
- Numeric keypad and menu-specific function keys allow for quick and efficient meter setup and data entry
- Selectable read modes include Auto-Read, On-Ready, At Timed Intervals, Continuous, Value Change in Measurement and Timed for variety of measurement collection methods for different analytical methods
- Perform up to 6 point pH calibration with automatic recognition for USA/NIST and EURO/DIN buffers with option to manually input custom buffer values
- Perform up to 6 point ion concentration (ISE) calibration with non-linear auto-blank and low-concentration stability options or use incremental methods for single/double known addition and single/double known subtraction
- Non-volatile meter memory holds up to 1000 data points with time and date stamp
- Easily transfer data via USB and RS232 to printer or computer with free Orion Dual Star Com™ communication software
- Stir samples with ease using meter-controlled Orion Star stirrer probe
- Meter-attachable electrode stand assists with moving and maintaining electrodes
- IP54-rated housing handles splashes and is wall-mountable to save space
Included:
- 927007MD Orion stainless steel ATC probe
- Electrode stand
- Universal power adapter
- Literature
- Computer interface cable
- Meter test certificate
Specifications:
| AC Adapter | Universal 50 to 60 Hz, 100 to 240 VAC power adapter (Cat. No. 1010003) |
| Accuracy (ISE) | ±0.2 mV or ±0.05 of reading, whichever is greater |
| Accuracy (Temperature) | ±0.1°C |
| Accuracy (mV) | ±0.2 mV or ±0.05% of reading whichever is greater |
| Accuracy (pH) | ±0.002 pH |
| Advanced ISE Functions | Linear point to point, non-linear selectable auto-blank, incremental techniques including single known addition and subtraction, double known addition and subtraction |
| Alarm Output | High/low limit alarm |
| Backlight Option | Yes, adjustable |
| Calibration | pH with calibration editing option, ion concentration (ISE) with calibration editing option |
| Calibration Points (pH) | 2 to 6 points |
| Calibration Points (ISE) | 1 to 6 points |
| Certifications/Compliance | IP-54 |
| Channels | 2 |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 1000 |
| Description | Orion Dual Star pH/ISE dual channel benchtop meter kit with ROSS Ultra glass-body pH electrode, ATC probe, solutions and stand |
| Dimensions, L x W x H | 24 x 17 x 9 cm (9.5 x 6.7 x 3.5 in.) |
| Display Type | Graphic LCD with backlight |
| Electrical Requirements | 90 to 260 VAC 50/60 Hz |
| Inputs | Two BNC (pH, ORP or ion selective electrode), two pin-tip (reference electrode), two 8 pin MiniDIN (ATC temperature probe), stirrer input (stirrer probe) |
| Isopotential Point | 7.000 pH (adjustable), 1.000 ISE (adjustable) |
| Keypad | Numeric with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian and German |
| Log Function Type | Automatic data logging with Auto-Read, On Ready, At Timed Intervals, Value Change In Measurement and Timed Reading; manual data logging with Continuous measurement mode |
| Measurement Modes | pH, mV, relative mV (RmV), ORP or ion concentration (ISE) with temperature |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Model | Orion Dual Star pH/ISE/mV/RmV/ORP/Temperature Dual Channel Benchtop Meter |
| Outputs | USB, RS232 |
|
Power Supply |
Universal 90-260 VAC (included), 50-60 Hertz |
|
Probe Type |
pH electrode, ORP electrode, ion selective electrode (ISE), reference half-cell electrode, ATC temperature probe, stirrer probe (includes 8102BNUWP ROSS Ultra pH electrode, 927007MD Orion ATC probe) |
|
Range (ISE) |
0 to 19999 in ppm, M, %, ppb or unitless |
|
Range (mV) |
±1999.9 mV |
|
Range (ORP) |
±1999.9 mV |
|
Range (pH) |
-2.000 to 19.999 pH |
|
Range (Relative Humidity) |
5 to 85 %, non-condensing |
|
Range (Relative mV) |
±1999.9 mV |
|
Range (Temperature) |
-5.0 °C to +105.0 °C |
|
Resolution (ISE) |
Up to 3 significant digits |
|
Resolution (mV) |
0.1 mV |
|
Resolution (pH) |
0.1, 0.01, 0.001 pH |
|
Resolution (Temperature) |
0.1 °C |
|
Stability |
Smart Stability and Smart Averaging |
|
Temperature (English) Operating |
41 to 113 °F |
|
Temperature (Metric) Operating |
5 to 45 °C |
|
Temperature Probe Calibration |
1 point temperature offset calibration |
|
Temperature Selection |
Manual or automatic with ATC temperature probe |
|
Warranty |
3 year meter replacement |
|
Weight |
0.9 kg (2 lb) |
