Description

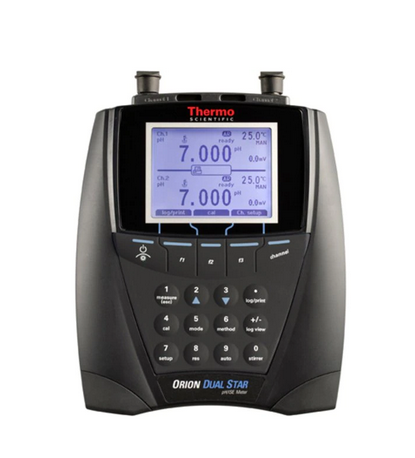

Thermo Scientific™ Orion™ Dual Star™ pH, ISE, mV, ORP and Temperature Dual Channel Benchtop Meter with ROSS Ultra Glass-Body pH Electrode, ATC Probe, Solutions and Standards, Orion, 2115001
Features:
- Two channels provides double measurement capabilities — record accurate and reliable pH, ion concentration, mV, ORP and temperature measurements on two available meter channels, ideal for high throughput pH and ion analysis in lab
- Shows results of both channels simultaneously on its large, backlit display or toggle to single channel measurement showing
- Collect critical measurements using an assortment of read modes and onscreen ready indicator that alerts when readings are stable
- Easy-to-follow onscreen text prompts for calibration and setup menus available in a multi-language user interface
- EZ Startup menu facilitates quick and easy first-time meter setup — numeric keypad and menu-specific function keys speeds meter setup and data entry
- Selectable read modes include Auto-Read, On-Ready, At Timed Intervals, Continuous, Value Change in Measurement and Timed for a variety of measurement collection methods for different analytical methods
- Perform up to a 6 point pH calibration with automatic recognition for USA/NIST and EURO/DIN buffers with option to manually input custom buffer values
- Perform up to a 6 point ion concentration (ISE) calibration with non-linear auto-blank and low-concentration stability options or use incremental methods for single/double known addition and single/double known subtraction
- Non-volatile meter memory holds up to 1000 data points with time and date stamp
- Easily transfer data via USB and RS232 to a printer or computer with free Orion Dual Star Com communication software
- Stir samples with ease using the meter-controlled Orion Star stirrer probe
- Meter-attachable electrode stand assists with moving and maintaining electrodes
- IP54-rated housing handles splashes and is wall-mountable to save space
Included:
- Dual Star Meter with Electrode Stand
- Universal Power Adapter
- 91-2661-42 (8102BNUWP) ROSS Ultra Glass Refillable pH Electrode
- 91-2646-29 Stainless Steel ATC Probe
- 91-2668-06 (Orion 810001) ROSS Storage Solution
- ORN-910104 (Orion 910104) pH 4.01 Buffer
- ORN-910107 (Orion 910107) pH 7.00 Buffer
- ORN-910110 (Orion 910110) pH 10.01 Buffer
Specifications:
| Advanced ISE Functions | Segmented (point-to-point) slope, non-linear selectable auto-blank, low concentration range stabilit |
| Alarm Output | High/low limit alarm |
| Backlight Option | Yes, adjustable |
| Calibration | pH with calibration editing option, ion concentration (ISE) with calibration editing option, relativ |
| Calibration Points | 1 point relative mV (RmV) mode, 1 point ORP mode |
| Calibration Points (pH) | 1 to 6 |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 1000 with date and time stamp |
| Description | Orion Dual Star pH/ISE dual channel benchtop meter kit with ROSS Ultra glass-body pH electrode, ATC probe, solutions and stand |
| Calibration Points (ISE) | 2 to 6 |
| Channels | 2 |
| Measurement Modes | pH, mV, relative mV (RmV), ORP or ion concentration (ISE) with temperature |
| Resolution (ISE) | 0.0001 minimum, 1 to 3 significant digits (user selectable) |
| Resolution (pH) | 0.1, 0.01, 0.001 |
| Display Type | Graphic LCD with Backlight |
| Inputs | Two BNC (pH, ORP or ion selective electrode), two pin-tip (reference electrode), two 8 pin MiniDIN (ATC temperature probe), stirrer input (stirrer probe) |
| Isopotential Point | 7.000 pH (adjustable), 1.000 ISE (adjustable) |
| Keypad | Numeric with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian and German |
| Log Function Type | Automatic data logging with Auto-Read, On Ready, At Timed Intervals, Value Change In Measurement and |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Model | Orion Dual Star pH/ISE/mV/RmV/ORP/Temperature Dual Channel Benchtop Meter |
| Probe Type | pH electrode, ORP electrode, ion selective electrode (ISE), reference half-cell electrode, ATC temperature probe, stirrer probe (includes 91-2661-42 (8102BNUWP) ROSS Ultra pH electrode, 91-2646-29 927007MD Orion ATC probe) |
| Resolution (mV) | 0.1 mV |
| Resolution (Temperature) | 0.1 °C, 0.1 °F |
| Stability | Smart Stability and Smart Averaging |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Selection | Manual or automatic with ATC temperature probe |
Specifications
| Range | pH: -2.000 to 19.999 |
|---|---|
| Range | ISE: 0.0001 to 19,900 in ppm, M, mg/L, % or unit-less |
| Range | mV: +/-1999.9 mV, Relative mV: +/-1999.9 mV, ORP: +/-1999.9 mV |
| Range | Temperature: -5.0 degrees C to +105.0 degrees C / 41 degrees F to 221 degrees F |
| Power | 90 to 260 VAC 50/60 Hz Universal AC adapter Power Supply |
| Accuracy | pH: +/-0.002, mV and ISE: +/-0.2 mV or +/-0.05% of reading whichever is greater, Temperature: +/- 0.1 degree C |
| Compliant/Standard | CE, TUV 3-1, FCC Class A |
| Operating Environment | 5 degrees C to 45 degrees C (ambient)/41 degrees F to 113 degrees F/Relative Humidity: 5 to 85 %, non-condensing |
| Connectivity | USB, RS232 |
| D.O.T. Number | Not regulated |
| Dimensions | 24 x 17 x 9 cm (9.5 x 6.7 x 3.5 in.) |
| Weight | 0.9 kg / 2 lb |
| Manufacturer | Thermo Scientific Orion |
| Model No | 2115001 |
| Warranty | 3 Year Meter Warranty |
