Description

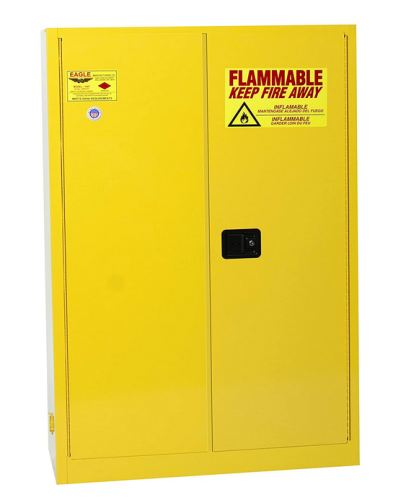

Eagle 45 gallon, 65 in. H x 43 in. W x 18 in. D, Steel, Yellow, 1947
Features:
- Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets
- Designed to meet OSHA and NFPA standards
- Sure-Grip® EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2 in. (38-mm) of insulating air space for fire resistance
- High-performance, self-latching doors close easily and securely for maximum protection under fire conditions
- Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time
- For added security, U-Loc™ handle comes with cylinder lock and key set or accepts optional padlock
- Haz-Alert™ reflective warning labels are highly visible under fire conditions or during power outages when illuminated with flashlight
- Patented SpillSlope® galvanized steel shelves direct spills to back and bottom of a leakproof 2” (51-mm) bottom sump
- Shelves adjust on 3 in. (76 mm) centers for versatile storage
- Dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label
- Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance
- Manual-close door(s) opens to a full 180 degrees and self-latches when pushed closed
- Self-close door(s) shuts and latches automatically when fusible link melts at 165 °F (74 ºC) under fire conditions
- Unique, concealed self-closing mechanism offers obstruction-free access to contents
- All door styles meet OSHA and NFPA 30; self-close door styles also meet NFPA 1 and the International Fire Code
- Most cabinets are FM approved and all come with a ten-year warranty.
Specifications:
| Material Specifications | 18-Gauge CR Steel |
| FM Approval | Yes |
| OSHA Compliance | Yes |
| Complies with International Fire Code | Yes |
| Complies with NFPA Code 30 | Yes |
| Complies with NFPA 1 Fire-Code | Yes |
| Number of Doors | 2 |
| Door Type | Self-close |
| Number of Shelves | 2 |
| Adjustable Shelves | Yes |
Specifications
| Capacity | 45 gallons (170 L) |
|---|---|
| Material | 18 gauge CR steel |
| Compliant/Standard | OSHA , NFPA 30, NFPA 1, FM, International Fire Code |
| Other | Interior: 60.5 in. H x 39.5 in. W x 14.6 in. D (1537 mm H x 1003mm W x 370 mm D) |
| Dimensions | Exterior: 65 in. H x 43 in. W x 18 in. D (1651 mm H x 1092 mm W x 457 mm D) |
| Weight | 272 lbs (123.4 kg) |
| Model No | 1947 |
| Warranty | 10 year warranty |
