Description

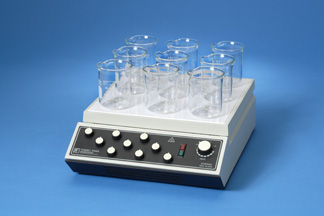

The Torrey Pines Scientfic® EchoTherm™ HS19 9-position Analog Stirring Hot Plate is a ruggedly-constructed, space-saving unit that can be used to stir or to heat and stir. The hot plate is designed with a flat, solid ceramic white heater surface mounted on a cast aluminum chassis. The chassis is painted with chemically resistant epoxy paint and is designed to keep spills out of the case. The ceramic heater plate is encased in cast aluminum to keep heat away from the edge of the plate and the solid state heating and stirring controls are mounted well forward of the heater plate to prevent accidental burns.Features:
- Heat to 450°C on plate surface in minutes
- Stir from 100–1500 rpm on each stirring position with individual controls
- Stir 9-500 ml beakers on HS19
- Plate size on all units is 12” (30.48 cm) x 12”(30.48 cm)
- Solid ceramic heater surface for excellent chemical resistance
- Heater plate mounted in cast aluminum frame that remains cool for safety
- Powerful 1200 watt heaters on hot plate/stirrers
- Fused for safety
- Rugged cast aluminum chassis
- 12-month warranty
- UL, CSA and CE certified
| Hot Plate: | |
| Hot plate surface | Solid Ceramic |
| Maximum temperature of the plate surface | 450°C |
| Time to Achieve maximum temperature,Unloaded | 10 minutes |
| Temperature Control | ±2.5°C |
| Heater power | 1200 watts |
| Stirrer: | |
| Speed range, unloaded | 200-1500 rpm |
| Maximum Load, aqueous | 9-500 ml beakers |
| Magnet strength | 20 lbs |
| Weight capacity on heater surface | Over 50 lbs (22.5kg) |
| Electrical: | |
| Operating voltage | 115VAC / 60Hz |
| Power consumption | 1700 watts |
| Current Draw | 14.5 amps |
| Unit Size | 17" x 12.5" x 5.5" |
| Unit Weight | 38 lbs (17.2 kg) |
