Description

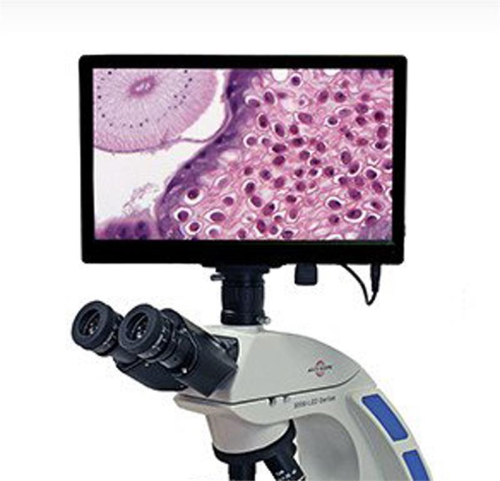

Accu-Scope™ Excelis® HD Camera plus HD Retina Screen, AU-600-HDSThe Excelis HD camera is a full-featured HD camera offering 60fps in video preview with unrivaled color fidelity and on-board image capturing capability allowing it to set a new standard for excellence in high definition imaging for scientific and industrial applications. It has lsimultaneous live image output to an HD monitor and to a computer via USB 2.0. Images can be saved directly to a PC or Mac or into an SD card. The camera is supplied with the full-featured CaptaVision PC image analysis software.Features:
- Easy-to use on-board software
- Intuitive interface
- Simple to install
- Superior performance and color
- Built-in mouse control software for HDMI viewing and recording without a computer
- HDMI at ~ 60fps for live imaging and ~ 30fps image transfer
- USB 2.0 at ~30fps
- Fluorescence imaging
- Auto or manual exposure time capability
- 3D noise reduction
- 1080P video recording
- Magnify (ROI), rotate and flip images with ease
- Side by side image comparison
- Browse captured images and videos
- Live image measurement tools and image shortcut tools
- 11.6 HD display screen allows viewing from all angles without a PC
- Industrial
- Pathology
- Cytology
- Histology
- Gemology
- Brightfield
- Phase Contrast
- Fluorescence
- Darkfield
| Model | AU-600-HDS |
| Sensor | SONY IMX236 |
| Sensor size | 1/2.8 , 0.5x C-mount recommended |
| Live resolution | 1920 x 1080 |
| Frame rate | HDMI: 60fpsUSB 2.0: 30fps |
| Image capture | High speed SD card (8GB) |
| Video capture | HDMI: 1080p, 30fps to SD cardUSB 2.0: 1080p, 30fps to PC or Mac |
| Exposure time | 0.001 sec - 10.0 sec |
| White balance | Auto |
| Settings | Gain, Gamma, Saturation, Contraction |
| Built-in software | Cloud 1.0 (with live image measurement) |
| PC imaging software | CaptaVision Imaging Sotware (for PC only, Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus staking); image stitching; fluorescence image settings; fluorescence mult-color channel merge; HDR (High Dynamic Range) functionImage Types: JPEG, BMP, TIFF, and RAW |
| Output modes | Mode 1: USB 2.0Mode 2: HDMI |
| System compatibility | Windows® XP, Vista, 7, 8, and 10 (32 or 64 bit), Mac OSX (for image transfer to Mac OSX only)Sytem Requirements: Intel® processor (Core 2 Duo or higher); 2 GB memory or more; USB 2.0 Hi-speed port) |
| Power supply | DC 12V/1A |
| Monitor | Mountable 11.6 HD display Contrast: 1000:1Dot Pitch: 0.1338 mm |
| Input Modes | AC power, HDMI |
| Certifications | ISO 9001, ISO 14001, CE, RoHS |
