Description

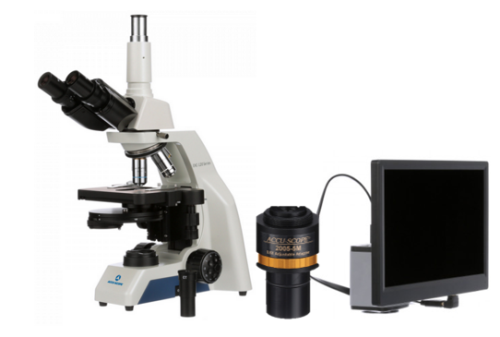

Accu-Scope® Excelis™ Trinocular Microscope with Turret Phase System/0.50 Focusable C-Mount Adapter/Excelis™ HD Lite with Monitor System, EXC-123PH/20055M/AU300HDS
Feature:
Microscope:
- Optical System: DIN Optical System, f=160 mm, Anti-Mold
- Viewing Head: Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 48-75 mm
- Eyepieces: WF10x/18.5 mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering and accept 19mm reticles
- Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
- Objectives: Plan Phase Achromat objectives; 4x, 10x, 40xR* and 100xR oil* -- (*spring-loaded)
- Stage: Stage size 150 mm x 139 mm; travel area 75 mm (X) x 32 mm (Y) movement with right hand control; vernier scale reading to 0.1 mm
- Condenser: Phase condenser, N.A. 1.25 on rack and pinion with iris diaphragm and swing-out filter holder
- Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
- Illumination: Variable LED illumination; bulb life rated for 20,000 hours; UL approved
- Focusing System: Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears
- Accessories: Dust cover, immersion oil and instruction manual included
Adapter:
- 0.5x c-mount adapter to attach camera to EXC-120 equipped with a photo tube or trinocular port
- Fits directly into 23mm photo port or eyetube, for 30mm I.D. eyetubes, reducing adapter is required (CAT# 5036)
- Adapter can be focused to match the focus of the digital image to the image seen through the eyepieces
- Ideal for use with 0.5 in. diagonal camera sensors or smaller
Camera/Monitor:
- HD live imaging for scientific and industrial applications. Capture 5MP still images.
- Use the included 11.6 in. HD monitor to view and capture images without a PC.
- View and capture images without a PC (HDMI monitor required).
- Built-in mouse control software for HDMI viewing and recording without a computer.
- Monitor mounts directly to the Excelis HD camera body for convenient access and doesn't take up valuable bench space.
- CaptaVision Imaging Software (included) extends the capabilities of the Excelis HD with advanced image processing and measurement features (requires PC; not included).
- Standard C-mount easily adapts to most microscopes; 0.5x camera adapter recommended.
- 1-year warranty
- In the box: Excelis HD Camera, 11.6 in. HD display, display bracket and screws, HDMI Cable, HDMI adapter, USB 2.0 Cable, Y power splitter cable, 12V Power Adapter, 4GB SD Card, USB Mouse, CaptaVision PC Imaging Software
Specifications for Camera/Monitor:
| Sensor | 1/2.5 in. Aptina MT9P031 color CMOS, 2.2µm pixels |
| Live Resolution | 1920 x 1080 |
| Capture Resolution | 5MP (2592 x 1944) |
| Frame Rate | HDMI: 30fps / USB2.0: 15fps |
| Image Capture | Hi Speed SD Card (4GB); (accepts Class 10 SD card, 32GB maximum) |
| Video Capture | HDMI: 1080p, 15 fps to SD Card / USB 2.0: 1080p, 15 fps to PC |
| Exposure Time | 0.001 sec – 10.0 sec |
| White Balance | Automatic |
| Other Settings | Gain, Gamma, Saturation, Brightness, Sharpness |
| Built-in Software (stand-alone operation) | Cloud 1.0 (on-screen live image measurement is not available with Excelis HD Lite cameras) |
| PC Imaging Software | CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPG and TIF |
| Output Mode | HDMI or USB2.0 |
| System Requirements (for PC Imaging Software) | Intel Core i5 processor (Dual Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher |
| Power Supply | DC 12 V/1 A |
| Lens Mount | C-Mount lens adapter, 0.5x recommended |
| Monitor | Mountable 11.6 in. HD LCD display |
| Monitor Display Contrast | 1000:1 / Dot Pitch 0.1338 mm |
| Monitor Input Modes | AC power, HDMI |
Specifications
| Power | Microscope: 120 V Camera/Monitor: DC 12 V/1 A |
|---|---|
| Compliant/Standard | ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold |
| Dimensions | L x W x H: 255 mm x 198 mm x 368 mm / Shipping: 19 x 15 x 13 in.s |
| Weight | 15 lb / Shipping: 17 lbs |
| Manufacturer | Accu-Scope |
| Model No | EXC-123PH/20055M/AU300HDS |
| Warranty | 5-year for parts, labor and electronic components on microscope, 1 year on LED bulb, camera, screen |
