Description

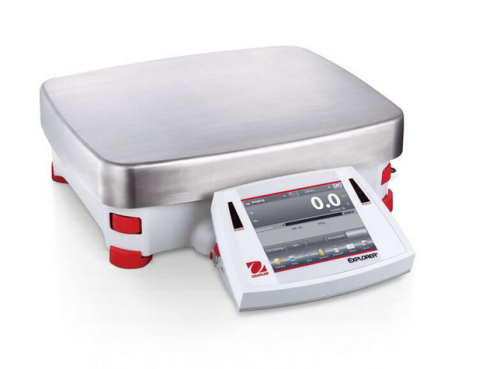

Ohaus® Explorer™ Precision High Capacity Balance, 12000 g x 0.1 g, EX12001
Features:
- 5.7" (145mm) diagonal color VGA touch screen optimizes viewing and menu navigation
- Two touchless sensors on display offer hands-free operation
- Display can be separated from base up to 5 feet (1.5 meters) in order to fit operational needs in almost any workspace
- 27 foot (9 meter) cable is also available when additional flexibility is needed
- With a die-cast metal base and a 14.8" × 12.2" (377 × 311mm) stainless steel pan, it is built to withstand rugged, every day use
- 2-D Protection prevents shock and damage associated with movement and forces applied to the balance
- P54 base enclosure protects the weighing base from damage by debris and accidental spills and splashes. (High Capacity models only)
- Other features include:
- selectable environmental filters
- Auto tare
- User selectable span calibration points
- Software lockout and reset menu
- User selectable communication settings and data print options
- User definable project and user IDs
- Auto standby
Specifications:
| Verification Interval | 1 g |
| Class | II |
| Internal Calibration | AutoCal™ - Automatic |
| Repeatability (sd.), ≤5% of Full Load (g) | 0.08 g |
| Repeatability (sd.), 5% of Full Load to Full Range (g) | 0.1 g |
| Linearity Deviation, Typical (g) | ±0.6 g |
| Linearity Deviation (g) | ±0.2 g |
| Sensitivity Draft (PPM/°C) | 3 |
| Display Type | Full-color VGA graphic display, 4-wire resistive touch screen |
| Display Size | 5.7 in / 145 mm (diagonal) |
| Display Housing | 7.68 × 3.54 × 6.06 in / 195 × 90 × 154 mm |
| Draftshield | — |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | 10 Hours with Rechargeable Battery |
| Inuse cover | Included |
| Legal for Trade | Not applicable |
| Minimum Weight (USP, 0.1%, typical) | 210 g |
| Pan Construction | Stainless Steel |
| Stabilization Time | 1 second |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Singapore Tael; Ounce Troy; Pennyweight; Kilogram; Grain; Tical; Custom; Milligram; Newton; Momme; Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce, Custom Unit 1, Custom Unit 2, Custom Unit 3 |
| Weighing Applications | Weighing, Percent Weighing, Parts Counting, Check Weighing, Dynamic/Animal Weighing, Filling,Totalization, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, SQC, Fill Weight Variation |
| Storage Conditions | 14 °F/-10 °C to 140 °F/60 °C at 10% to 90% relative humidity, non-condensing |
Specifications
| Range | Weight: 210 g to 12000 g |
|---|---|
| Range | Readability 0.1 g |
| Capacity | 12,000 g x 0.1 g |
| Material | Die cast top housing, stainless steel pan |
| Power | Power Input 100 to 240 VAC, 0.50 to 0.25 A, 47 to 63 Hz, Power Output: 24 VDC, 0.63 A, 15 W, Optional Rechargable Batter |
| Compliant/Standard | IEC/EN 610101:2010; CAN/CSAC22.2 No. 61010112; UL Std. No. 610101 (3rd Edition), RoHS, WEEE |
| Operating Environment | Temperature: 50 to 86 degrees F (10 to 30 degrees C); Humidity: 80% max up to 86 deg F/30 deg C, decreasing linearly to |
| Connectivity | RS232, USB and optional ethernet |
| Other | Pan Size: 14.8 in x 12.2 in (377 mm x 311 mm) |
| Dimensions | L x H x W: 17.44 in x 4.7 in x 14.9 in (443 mm x 120 mm x 377 mm) |
| Weight | 22 lbs / 10 kg (Shipping: |
| Manufacturer | Ohaus |
| Model No | EX12001 |
