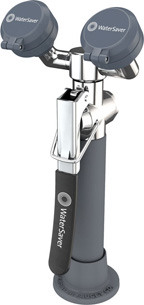

EyeWash/Drench Hose, Water Saver(Trademark), Deck-mounted; Prime Industries Inc EW1022

EyeWash/Drench Hose, Water Saver™, Deck-mounted; Prime Industries Inc EW1022

Features:

• Dual purpose eyewash/drench hose for deck mounting
• Unit meets the provisions of ANSI Z358.1 - 2004 as both an eyewash and a drench hose
• Unit may be left in the deck flange for use as a fixed eyewash, leaving user’s hands free
• Alternatively, unit may be removed for use as a drench hose to rinse any part of user’s eyes, face or body

Spray head assembly:

• Two GS-Plus™ spray heads mounted side-by-side
• Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow

Valve:

• Forged brass squeeze valve activated by stainless steel lever handle
• Valve has replaceable stainless steel seat for exceptional durability
• Locking clip engages when handle is depressed, providing “hands free” operation
• Stays open until locking clip is released

Hose:

• 8' reinforced PVC hose. 300 PSI maximum working pressure

Mounting:

• Deck flange for countertop mounting. Flange has handle locator guide to position spray heads and handle facing forward at all times

Backflow preventer:

• In-line dual check backflow preventer installed on inlet of hose (EW1022BP only).
• Note: Check with code authority for compliance with local plumbing code

Supply:

• 3/8"" NPT male swivel-type inlet

Sign:

• ANSI-compliant identification sign

Quality assurance:

• Unit is completely assembled and water tested prior to shipment
