Description

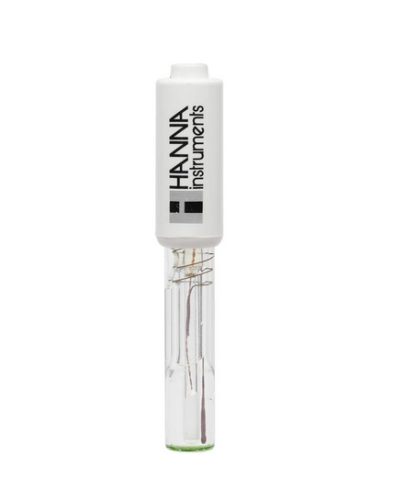

Hanna Instruments® Flat Tip pH Electrode for Skin and Scalp with Quick DIN Connector, HI14143/50
Features:
- Glass body, single reference junction pH electrode made with low temperature glass and a DIN connector
- Low temperature glass has lower resistance than general purpose glass making it suitable to use with samples that measure from 0 to 50°C
- Pre-amplified electrode features a built-in temperature sensor for temperature compensated measurements
- Unique open junction design with viscolene (hard gel) electrolyte layer that is free of silver chloride (AgCl) between sample to be measured and internal reference cell—resists clogging
- Flat tip makes it ideal for pH measurements on surfaces such as skin, leather, agar plates, and paper
- Recommended for use with Hanna's HI99181 (91-2611-87) pH meter
Specifications:
| Reference | single, Ag/AgCl |
| Junction / Flow Rate | open |
| Electrolyte | viscolene |
| Maximum Pressure | 0.1 bar |
| Tip / Shape | flat |
| Temperature Sensor | yes |
| Amplifier | yes |
| Body Material | glass |
| Cable | 7-pole; 1 m (3.3’) |
| Recommended Use | skin, scalp |
| Connection | Quick Connect DIN |
Specifications
| Range | pH: 0 to 12 |
|---|---|
| Operating Environment | 0 to 50 degrees C (32 to 122 degrees F) |
| Manufacturer | Hanna Instruments |
| Model No | HI14143/50 |
